RM-USBG-3

Base Product: WGB-AND-MISC-CABLE-SUPPORTS

Universal Round Member Support Bracket for three coaxial cable runs

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Round Member Support Bracket

General Specifications

Cable Runs, quantity 3
Hole, quantity 3
Mounting Round member

Dimensions

Height 50.8 mm | 2 in
Width 254 mm | 10 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

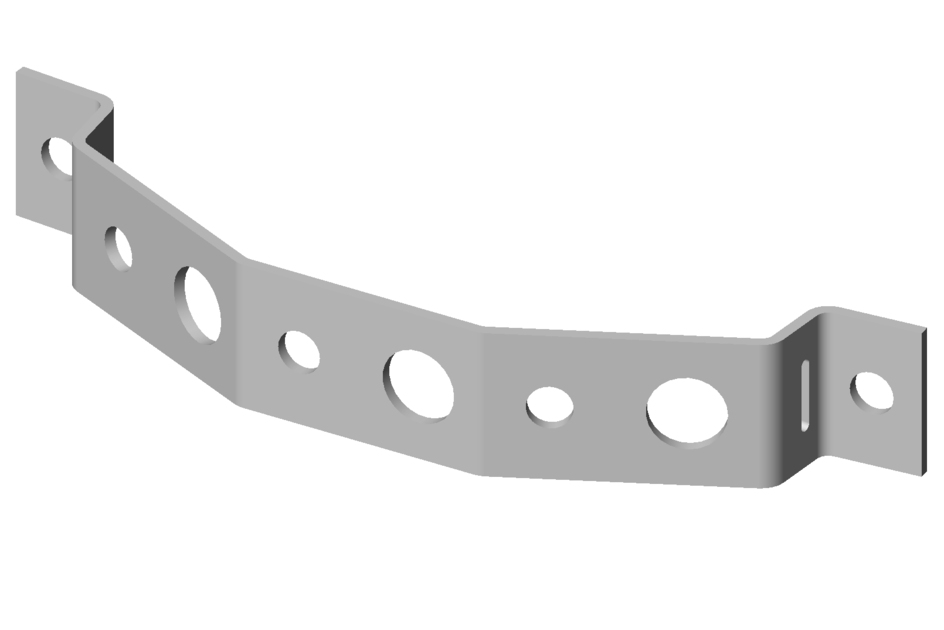

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Brackets
Packaging quantity 10
Weight, net 2.3 kg | 5.071 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant/Exempted

Product Classification

Product Type Round Member Support Bracket

General Specifications

Cable Runs, quantity 3
Hole, quantity 3
Mounting Round member

Dimensions

Height 50.8 mm | 2 in
Width 254 mm | 10 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Brackets
Packaging quantity 10
Weight, net 2.3 kg | 5.071 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant/Exempted
