LNX-6514DS-A1M
2-port sector antenna, 2x 698–896 MHz, 65° HPBW, 1x RET
Specifications
Features and Benefits
- Great solution to maximize network coverage and capacity
- Excellent gain, VSWR, front-to-back ratio, and PIM specifications for robust network performance
- Ideal choice for site collocations and tough zoning restrictions
- Excellent solution for site sharing and maximizing capacity
- Fully compatible with Andrew remote electrical tilt system for greater OpEx savings
- The RF connectors are designed for IP67 rating and the radome for IP56 rating
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |

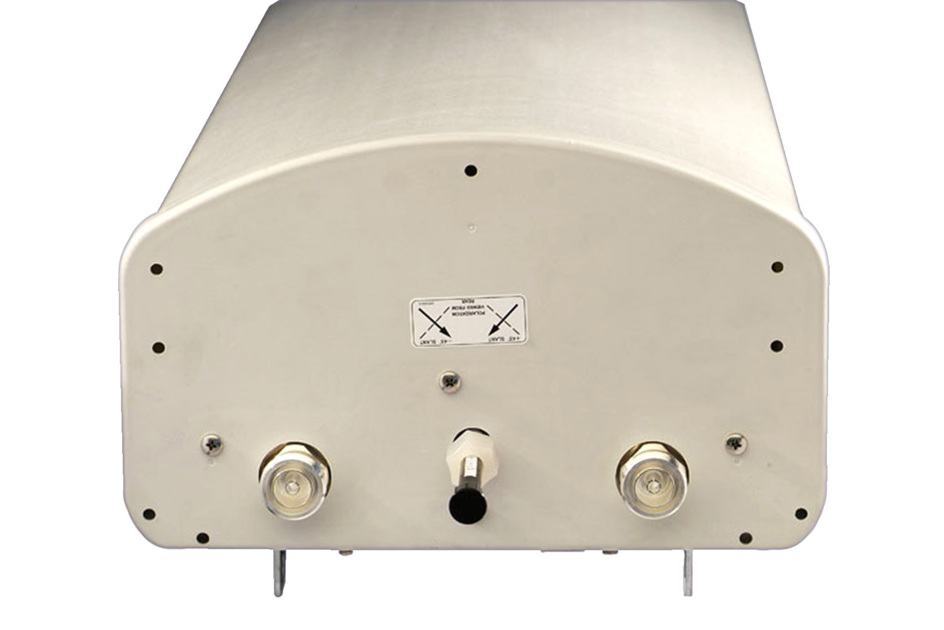

| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180.5 mm | 7.106 in |
| Length | 2048 mm | 80.63 in |
| Net Weight, without mounting kit | 14.6 kg | 32.187 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain, dBi | 15.8 | 15.9 |
| Beamwidth, Horizontal, degrees | 65 | 64 |
| Beamwidth, Vertical, degrees | 12.4 | 11.2 |
| Beam Tilt, degrees | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 19 |
| Front-to-Back Ratio at 180°, dB | 33 | 33 |
| Isolation, Cross Polarization, dB | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 400 | 400 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain by all Beam Tilts, average, dBi | 15.6 | 15.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 0 ° | 15.7 5 ° | 15.7 10 ° | 15.3 | 0 ° | 15.9 5 ° | 15.8 10 ° | 15.3 |
| Beamwidth, Horizontal Tolerance, degrees | ±1 | ±1.4 |
| Beamwidth, Vertical Tolerance, degrees | ±0.8 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 18 | 20 |
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 23 |
| CPR at Boresight, dB | 25 | 25 |
| CPR at Sector, dB | 15 | 12 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 545.0 N @ 150 km/h (122.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 287.0 N @ 150 km/h (64.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 284 mm | 11.181 in |
| Length, packed | 2163 mm | 85.158 in |
| Weight, gross | 32.9 kg | 72.532 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180.5 mm | 7.106 in |
| Length | 2048 mm | 80.63 in |
| Net Weight, without mounting kit | 14.6 kg | 32.187 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain, dBi | 15.8 | 15.9 |
| Beamwidth, Horizontal, degrees | 65 | 64 |
| Beamwidth, Vertical, degrees | 12.4 | 11.2 |
| Beam Tilt, degrees | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 19 |
| Front-to-Back Ratio at 180°, dB | 33 | 33 |
| Isolation, Cross Polarization, dB | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 400 | 400 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain by all Beam Tilts, average, dBi | 15.6 | 15.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 0 ° | 15.7; 5 ° | 15.7; 10 ° | 15.3 | 0 ° | 15.9; 5 ° | 15.8; 10 ° | 15.3 |
| Beamwidth, Horizontal Tolerance, degrees | ±1 | ±1.4 |
| Beamwidth, Vertical Tolerance, degrees | ±0.8 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 18 | 20 |
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 23 |
| CPR at Boresight, dB | 25 | 25 |
| CPR at Sector, dB | 15 | 12 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 545.0 N @ 150 km/h (122.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 287.0 N @ 150 km/h (64.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 284 mm | 11.181 in |
| Length, packed | 2163 mm | 85.158 in |
| Weight, gross | 32.9 kg | 72.532 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
