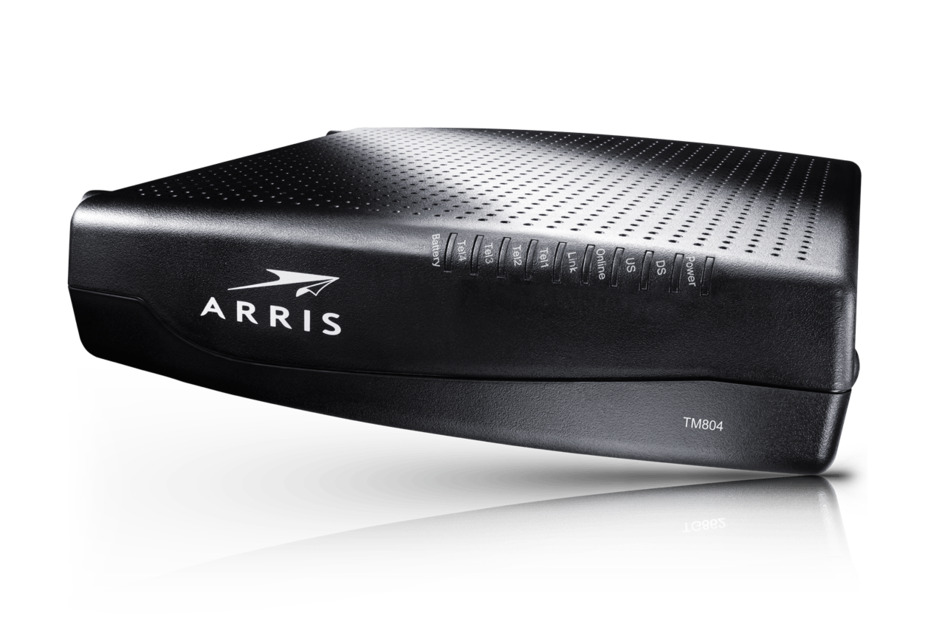

TM804 | Touchstone® TM804 E-MTA

Available in:
Latin America
North America

8x4 DOCSIS® 3.0 Modem (E-MTA) with 4 voice ports

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

The Touchstone TM804 DOCSIS 3.0 8x4 Embedded Multimedia Terminal Adaptor (E-MTA) delivers four lines of primary line Voice over IP (VoIP), ultra-high speed data access, and multiple battery pack options to support telephony service during power outages.

Designed to support the services desired most by advanced users, the TM804G enables cable operators to address business subscribers’ productivity demands with the speed and performance found only in the 8x4 channel bonded environment.

With the TM804G, cable operators can offer data services at speeds greater than 300Mbps to their subscribers to compete against VDSL and fiber threats. Additionally, the TM804 offers full support for a variety of voice codecs, including HD Voice support, as well as multiple call signaling methods – NCS, Legacy SIP, and PacketCable 2.0 IMS.

Along with industry-leading ARRIS voice and battery back-up features, and full support for new IPv6 services, the TM804 provides the small and medium business the essential voice and data services they need in a single package.

Not available in retail. Please check with your service provider for availability.

Toll grade voice performance equal to the industry leading TM604
Two independent 96MHz RF tuners to receive channels up to 1GHz
Configurable options for loop current, loop voltage management, and ringing waveform
Loop Diagnostics for remote testing and troubleshooting of in-house wiring
Advanced Diagnostics for easy troubleshooting - Call Quality Metrics for last fifty (50) calls
Multi-colored LEDs for rapid troubleshooting during installation or with customer service
Auto-adapting FSK/CAS tone levels, dynamic jitter buffers, and G.168 echo cancellation
Configurable battery management and reporting for customized operation
Boot from battery feature allows modem to initialize without AC Power
Simple to install, consumer replaceable, lithium-ion batteries
Built in MoCA® immunity filter

Specifications

Product Classification

Regional Availability	Latin America \| North America
Product Type	E-MTA

General Specifications

Access Technology	DOCSIS 3.0
Channel Bonding	Up to 8x4 SC-QAM
Diagnostic LEDs	Battery \| DS \| Link \| Online \| Power \| Tel 1 \| Tel 2 \| Tel 3 \| Tel 4 \| US
Ethernet Ports	1 x GigE
Interfaces	1x RJ45 (10/100/1000 Base-T) \| 2 mm Battery Connector \| 4x RJ11 \| ‘F’ type connector
RF Downstream Frequency Range	108-1002 MHz
RF Downstream Bonded Channels, quantity	Up to 8
RF Downstream Input Sensitivity Level	-15 dBmV to 15 dBmV
RF Downstream Data Rate	Up to 343 Mb/s
RF Upstream Frequency Range	5-42 MHz
RF Upstream Bonded Channels, quantity	Up to 4
RF Upstream Data Rate	Up to 122 Mb/s
Voice	Yes
Voice Ports, quantity	4

Dimensions

Height	246.38 mm \| 9.7 in
Width	53.34 mm \| 2.1 in
Length	180.34 mm \| 7.1 in

Electrical Specifications

Input Voltage

115–240 Vac

Environmental Specifications

Standards Compliance

Packaging and Weights

Weight, net

0.68 kg | 1.5 lb
