This product was discontinued on: December 30, 2020

For other alternatives, please contact us for more information.

0 Replacement products available

552647-2

  • Available in:
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

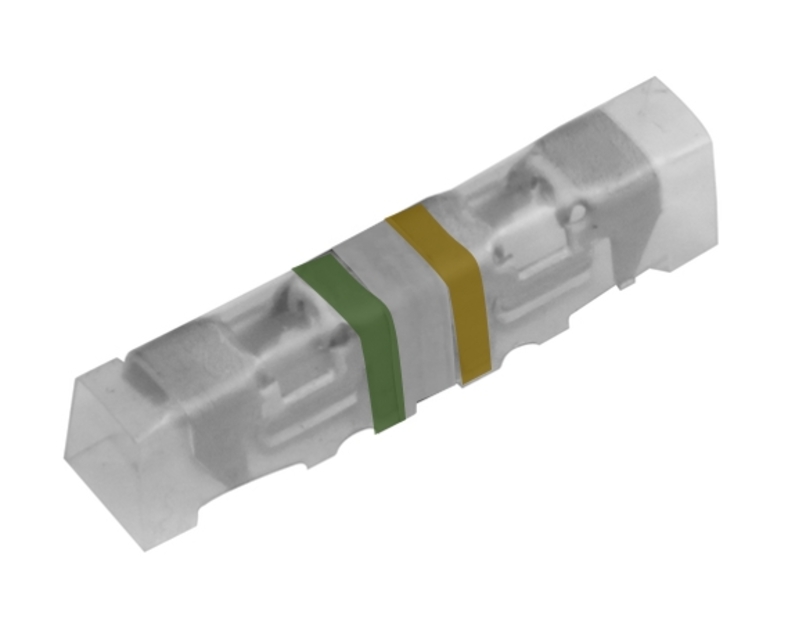

PICABOND® Connector, 1000 loose piece, green/amber, breakaway, unfilled

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Lightweight, compact, and economical means of splicing multiconductor telephone cable
  • No prestripping or cutting required, can tap without service interruptions, eliminates “turndowns”
  • Color-coded to indicate size and type of wire; used for standard load coil, breakaway load coil and breakaway (add slack) splicing applications

Product Classification

Regional Availability Australia/New Zealand | EMEA | Latin America | North America
Product Type Splice
Product Brand PICABOND®
Product Series PICABOND

General Specifications

Connector Color Code Green/Amber
Connector Sealant Unfilled
Connector Splicing Type Breakaway (add slack) | Breakaway Load Coil | Standard Load Coil

Dimensions

Compatible Conductor Gauge, solid 26–22 AWG

Electrical Specifications

Safety Voltage Rating 400 Vdc

Material Specifications

Contact Base Material Phosphor Bronze
Contact Plating Material Tin
Insulation Material Air Core PIC | Paper or Pulp

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Environmental Space Outdoor

Packaging and Weights

Packaging quantity 1000
Packaging Type Loose piece

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
