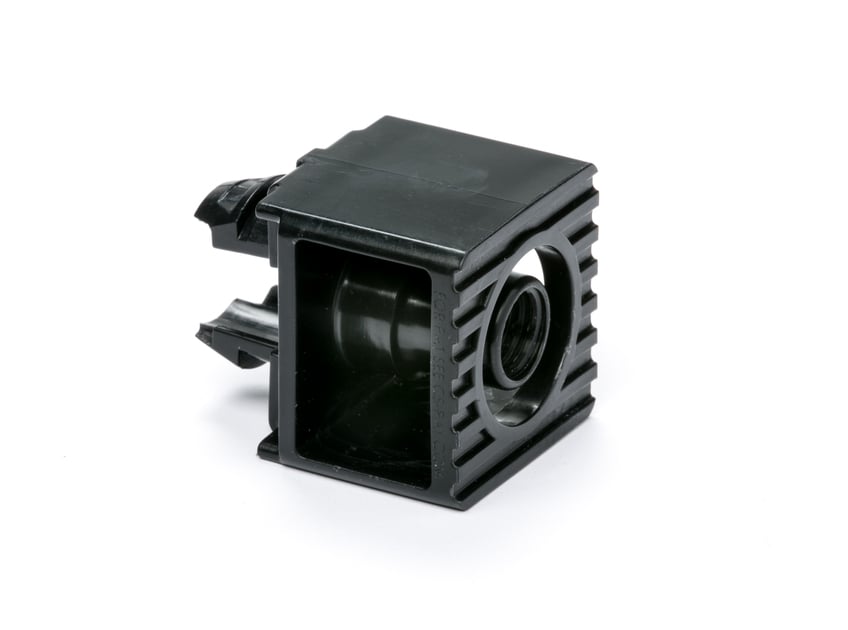

SA-1TR

PIM-free Multifunction Adapter for SnapTak Hangers
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Snaps into 3/4" holes to provide 1 inch standoff
  • Threads into 3/8" & 1/2" bolts & U-bolts to launch hangers
  • Snaps between SnapTak hangers to provide 360 degree hanger rotation
  • For patents see www.cs-pat.com
Specifications

Product Classification

Product Type Adapter
Product Brand PIM-guard
Ordering Note CommScope® standard product in the United States and Canada

General Specifications

Adapter Type Stand-off adapter
Color Black
Mounting 3/4 in through hole | 3/8 in threads | 1/2 in threads

Dimensions

Height 1.02 in | 25.908 mm
Width 1.14 in | 28.956 mm
Length 0.1 ft | 0.03 m

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Maximum Loading Triple stack for hangers SSH-47, SSH-710, SSH-1014, SSH-1416
Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours

Packaging and Weights

Height, packed 17 cm | 6.693 in
Width, packed 13 cm | 5.118 in
Length, packed 10 cm | 3.937 in
Packaging quantity 10
Weight, gross 0.15 kg | 0.331 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
