42396A-9

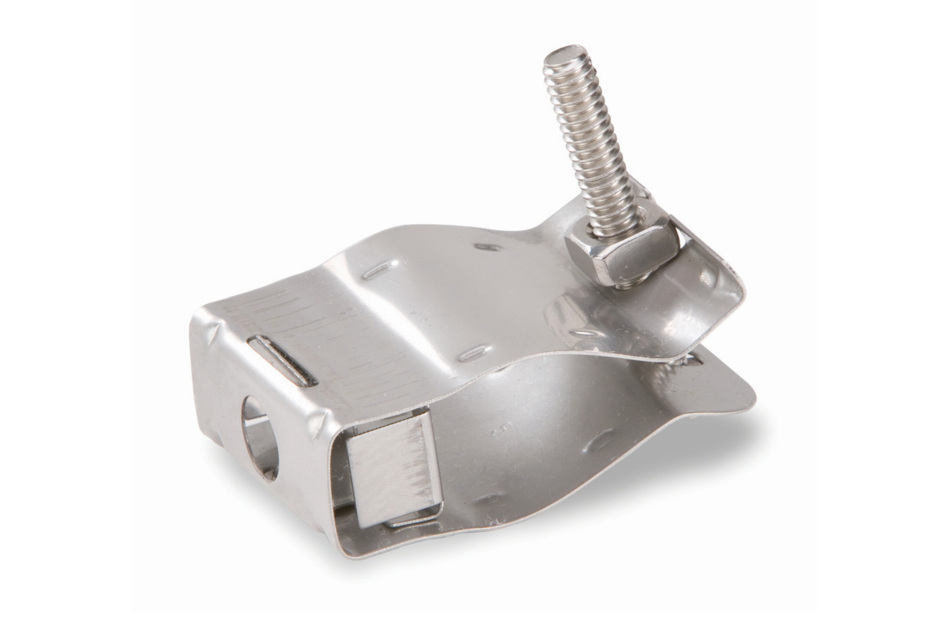

Butterfly Hanger for 5/8 in coaxial cable and elliptical waveguide 127 and 132
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Standard butterfly hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 1.31 in | 33.274 mm
Width 1.5 in | 38.1 mm
Length 1.68 in | 42.672 mm
Compatible Diameter, maximum 0.867 in | 22.022 mm
Compatible Diameter, minimum 0.82 in | 20.828 mm
Nominal Size 5/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 26 cm | 10.236 in
Width, packed 9 cm | 3.543 in
Length, packed 9 cm | 3.543 in
Packaging quantity 10
Weight, gross 0.48 kg | 1.058 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Hanger kit
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Standard butterfly hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 1.31 in | 33.274 mm
Width 1.5 in | 38.1 mm
Length 1.68 in | 42.672 mm
Compatible Diameter, maximum 0.867 in | 22.022 mm
Compatible Diameter, minimum 0.82 in | 20.828 mm
Nominal Size 5/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 26 cm | 10.236 in
Width, packed 9 cm | 3.543 in
Length, packed 9 cm | 3.543 in
Packaging quantity 10
Weight, gross 0.48 kg | 1.058 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
