43211A

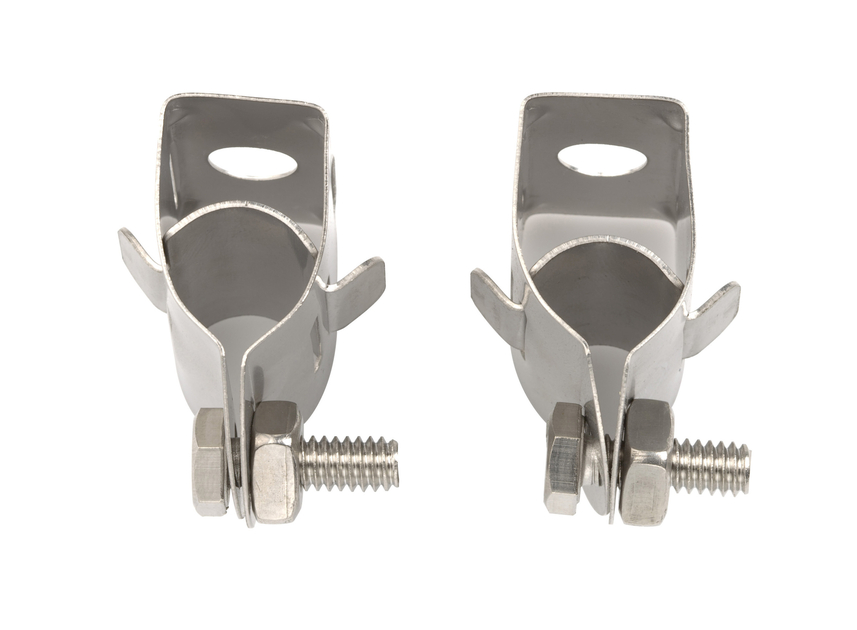

Butterfly Hanger for 1/2 in or 3/8 in coaxial cable and elliptical waveguide 180, 220, and 240
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada | CommScope® standard product in Mexico, Central America, and South America

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Standard butterfly hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 31.75 mm | 1.25 in
Width 38.1 mm | 1.5 in
Length 40.64 mm | 1.6 in
Compatible Diameter, maximum 16.256 mm | 0.64 in
Compatible Diameter, minimum 10.414 mm | 0.41 in
Nominal Size 1/2 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 14.8 cm | 5.827 in
Width, packed 10.6 cm | 4.173 in
Length, packed 9 cm | 3.543 in
Packaging quantity 10
Weight, gross 0.34 kg | 0.75 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada | CommScope® standard product in Mexico, Central America, and South America

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Standard butterfly hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 31.75 mm | 1.25 in
Width 38.1 mm | 1.5 in
Length 40.64 mm | 1.6 in
Compatible Diameter, maximum 16.256 mm | 0.64 in
Compatible Diameter, minimum 10.414 mm | 0.41 in
Nominal Size 1/2 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 14.8 cm | 5.827 in
Width, packed 10.6 cm | 4.173 in
Length, packed 9 cm | 3.543 in
Packaging quantity 10
Weight, gross 0.34 kg | 0.75 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
