68MCLICK

Base Product: CLICK-SERIES-HANGERS

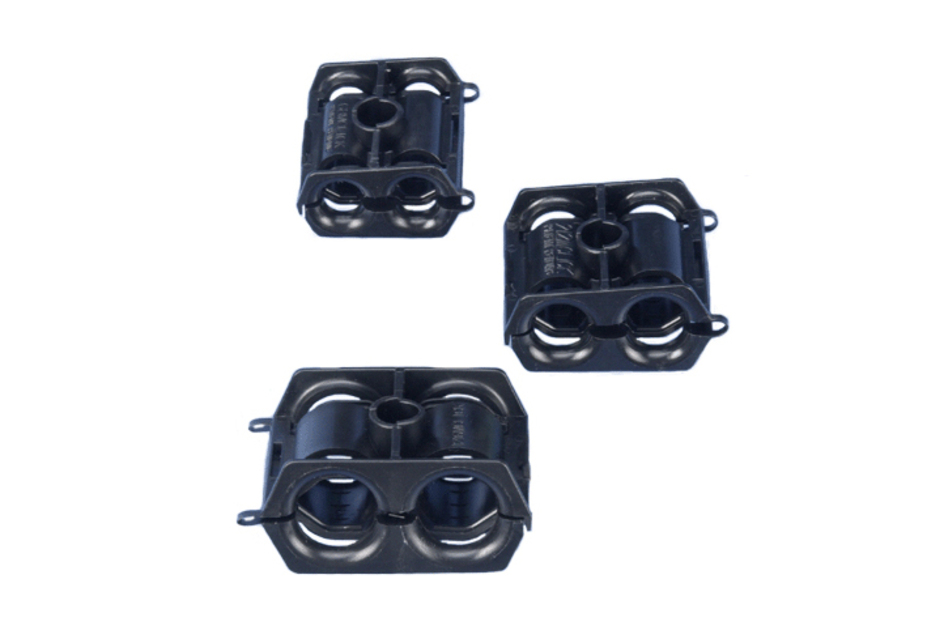

Miniature Click-on Hanger for 6–8 mm cable

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Click-on hanger
Mounting M8 through hole

Dimensions

Maximum Stack Height 3
Height 38.1 mm | 1.500 in
Width 16 mm | 0.630 in
Length 35.1 mm | 1.382 in
Compatible Cable Diameter Range 5.8–8.1 mm
Compatible Diameter, maximum 8.1 mm | 0.319 in
Compatible Diameter, minimum 5.8 mm | 0.228 in
Nominal Size 1/4 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 30.4 cm | 11.969 in
Width, packed 27.9 cm | 10.984 in
Length, packed 2.5 cm | 0.984 in
Packaging quantity 10
Weight, gross 0.09 kg | 0.198 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
