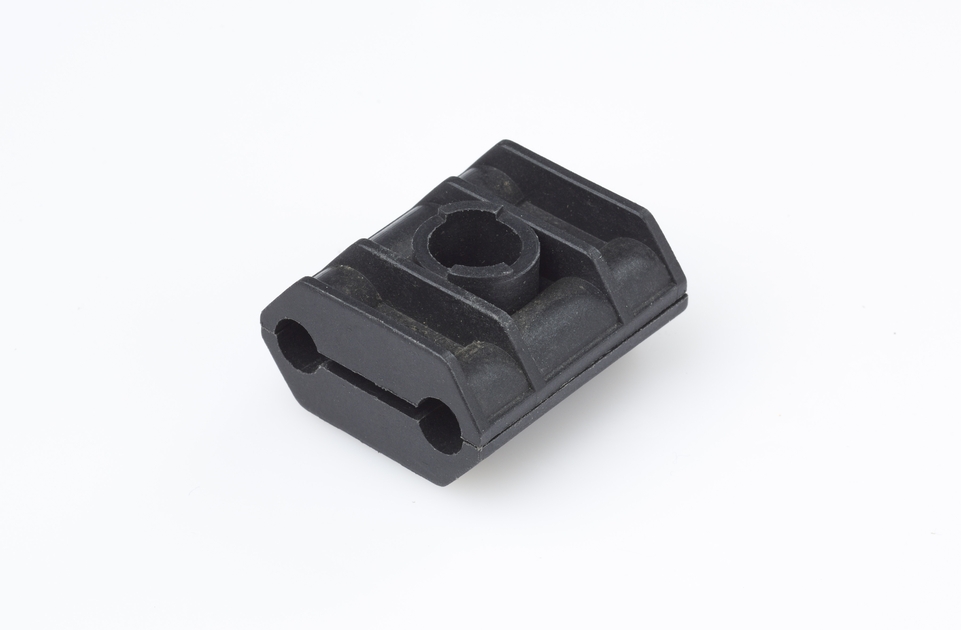

BHD-14

Double Block Hanger for 1/4 in coaxial cable
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod

Dimensions

Height 36.068 mm | 1.42 in
Maximum Stack Height 3
Width 19.05 mm | 0.75 in
Length 32.004 mm | 1.26 in
Compatible Diameter, maximum 8.992 mm | 0.354 in
Compatible Diameter, minimum 7.01 mm | 0.276 in
Nominal Size 1/4 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type 30% glass filled polypropylene (PP)

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 3.8 cm | 1.496 in
Width, packed 10.2 cm | 4.016 in
Length, packed 14 cm | 5.512 in
Packaging quantity 10
Weight, gross 0.11 kg | 0.243 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
