BHD-158

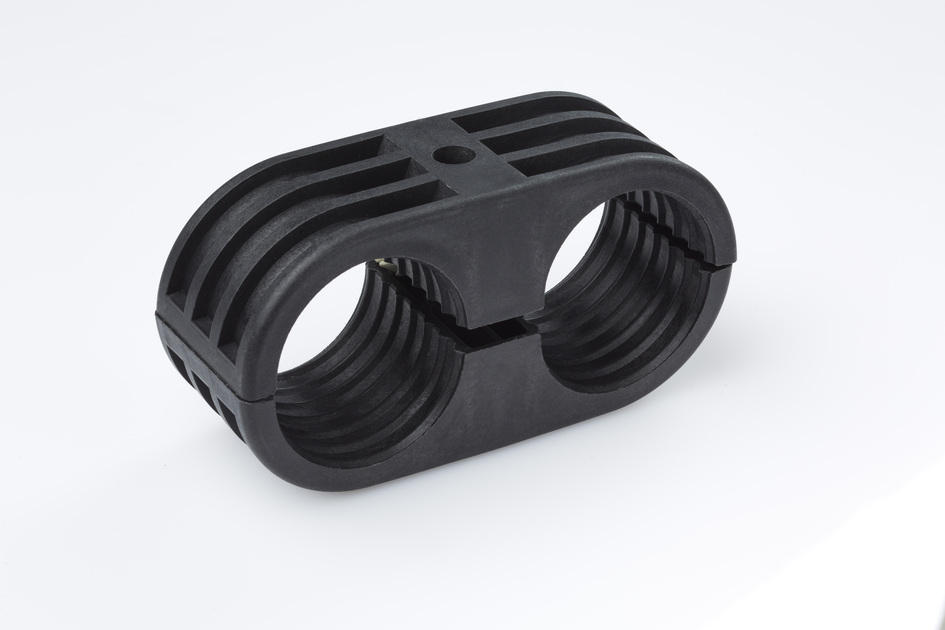

Double Block Hanger for 1-5/8 in coaxial cable
Specifications
Product Classification
| Product Type | Hanger kit |
| Ordering Note | CommScope® standard product in the United States and Canada |
General Specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | Double block hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Height | 1.89 in | 48.006 mm |
| Maximum Stack Height | 3 |
| Width | 2.8 in | 71.12 mm |
| Length | 5.39 in | 136.906 mm |
| Compatible Diameter, maximum | 2.01 in | 51.054 mm |
| Compatible Diameter, minimum | 1.95 in | 49.53 mm |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | 30% glass filled polypropylene (PP) |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 5.1 cm | 2.008 in |
| Width, packed | 25.4 cm | 10 in |
| Length, packed | 30.5 cm | 12.008 in |
| Packaging quantity | 10 |
| Weight, gross | 1.38 kg | 3.042 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | ISO 9001:2015Designed, manufactured and/or distributed under this quality management system |
| ROHS | ROHSCompliant |
| CHINA-ROHS | CHINA-ROHSBelow maximum concentration value |
| REACH-SVHC | REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance |
