SSH-12-4

Base Product: SSH-SERIES-HANGERS

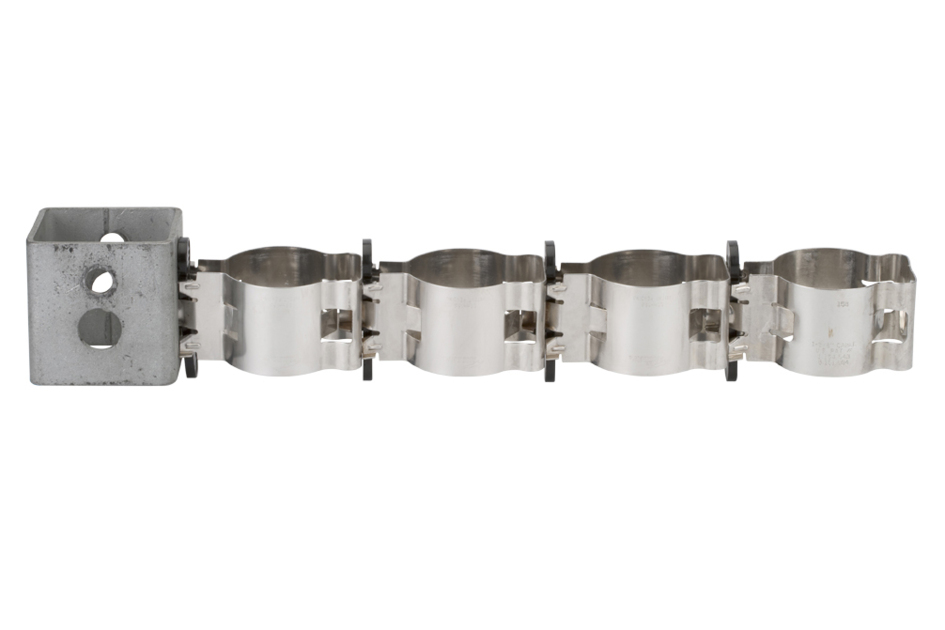

SnapStak® Hanger for 1/2 in coaxial cable, quadruple stack capability, includes reinforcement bar

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand SnapStak®
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Snap-in hanger
Mounting 3/4 in drilled cable ladder

Dimensions

Maximum Stack Height 4
Height 40.9 mm | 1.610 in
Width 22.9 mm | 0.902 in
Length 66 mm | 2.598 in
Compatible Cable Diameter Range 15.5–18.3 mm
Compatible Diameter, maximum 18.3 mm | 0.720 in
Compatible Diameter, minimum 15.5 mm | 0.610 in
Nominal Size 1/2 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 15.2 cm | 5.984 in
Width, packed 10.4 cm | 4.094 in
Length, packed 9 cm | 3.543 in
Packaging quantity 10
Weight, gross 0.36 kg | 0.794 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
