SSH-XL

Base Product: SSH-SERIES-HANGERS

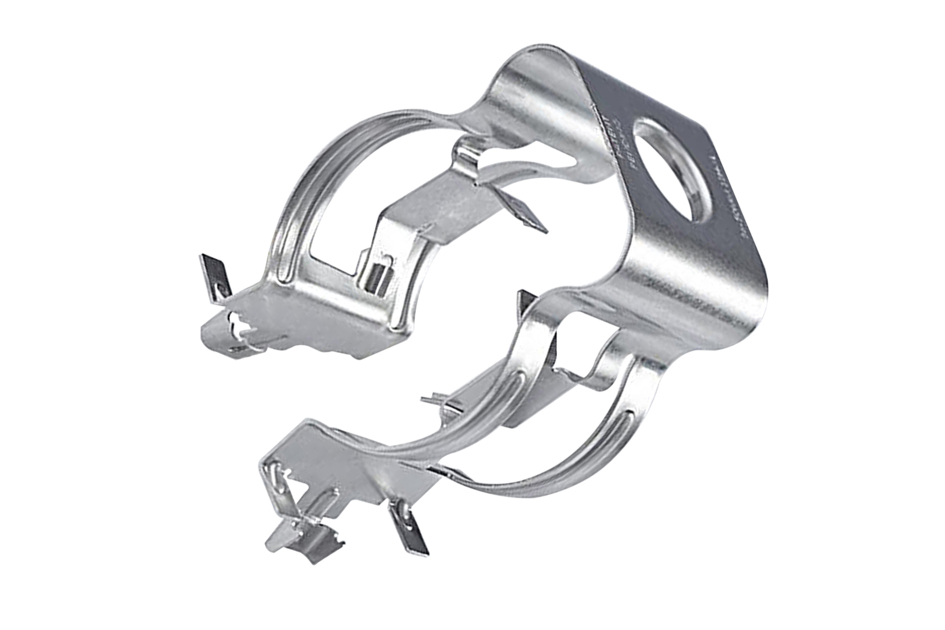

SnapStak® Plus Adjustable Hanger for 36mm to 51mm Cable - No Grommets Required. For patents, see www.cs-pat.com.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand SnapStak® Plus
Ordering Note CommScope® standard product (Global)

General Specifications

Accessories Hangers
Cables per Hanger 1
Color Silver
Hanger Type Snap-in hanger
Mounting 3/4 in drilled cable ladder
Patent Number US 9,866,004

Dimensions

Maximum Stack Height 2
Maximum Stack Height, Coaxial 2
Height 88.1 mm | 3.469 in
Width 40.9 mm | 1.610 in
Length 99.1 mm | 3.902 in
Compatible Cable Diameter Range 36–51 mm
Compatible Diameter, maximum 51 mm | 2.008 in
Compatible Diameter, minimum 36 mm | 1.417 in
Nominal Size NA

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥1000 hours in salt spray chamber
Environmental Strength Capability Double cable weight
Flammability Test Method UL 2043

Packaging and Weights

Height, packed 30.5 cm | 12.008 in
Width, packed 15 cm | 5.906 in
Length, packed 25.4 cm | 10 in
Packaging quantity 10
Weight, gross 0.53 kg | 1.168 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
