SSHAK-3812

Base Product: SSH-SERIES-HANGERS

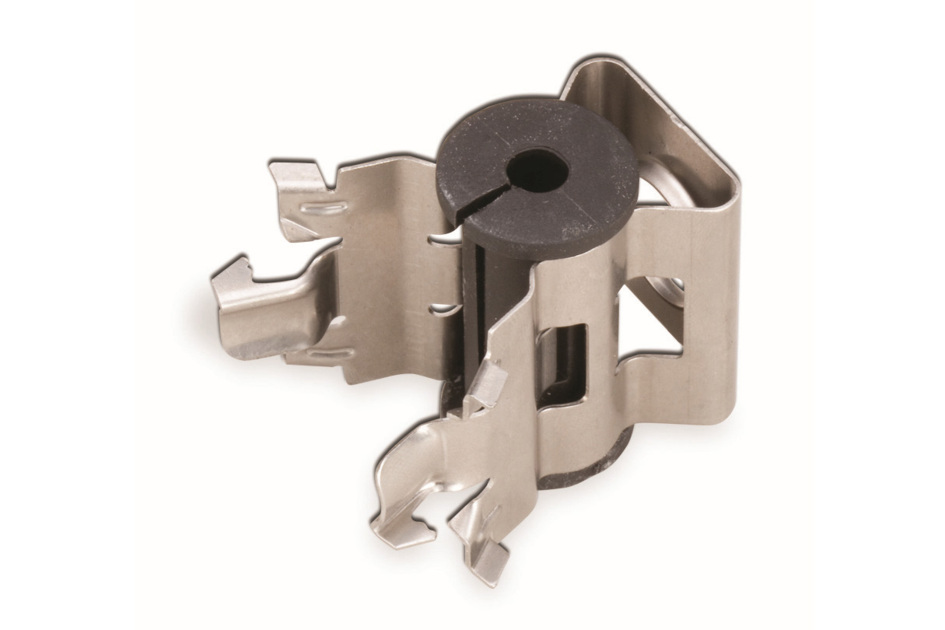

SnapStak® Hanger Kit for 3/8 in RET cable

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand SnapStak®
Ordering Note CommScope® non-standard product

General Specifications

Cables per Hanger 1
Color Silver
Hanger Type Snap-in hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Maximum Stack Height 3
Height 40.9 mm | 1.610 in
Width 22.9 mm | 0.902 in
Length 66 mm | 2.598 in
Compatible Cable Diameter Range 7–9 mm
Compatible Diameter, maximum 9 mm | 0.354 in
Compatible Diameter, minimum 7.1 mm | 0.280 in
Nominal Size 3/8 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type EPDM rubber | Stainless steel

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and Weights

Height, packed 32.5 cm | 12.795 in
Width, packed 13.5 cm | 5.315 in
Length, packed 15.5 cm | 6.102 in
Packaging quantity 10
Weight, gross 1.4 kg | 3.086 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
