MTC38523
Base Product: MOUNT-REINFORCEMENT-KITS

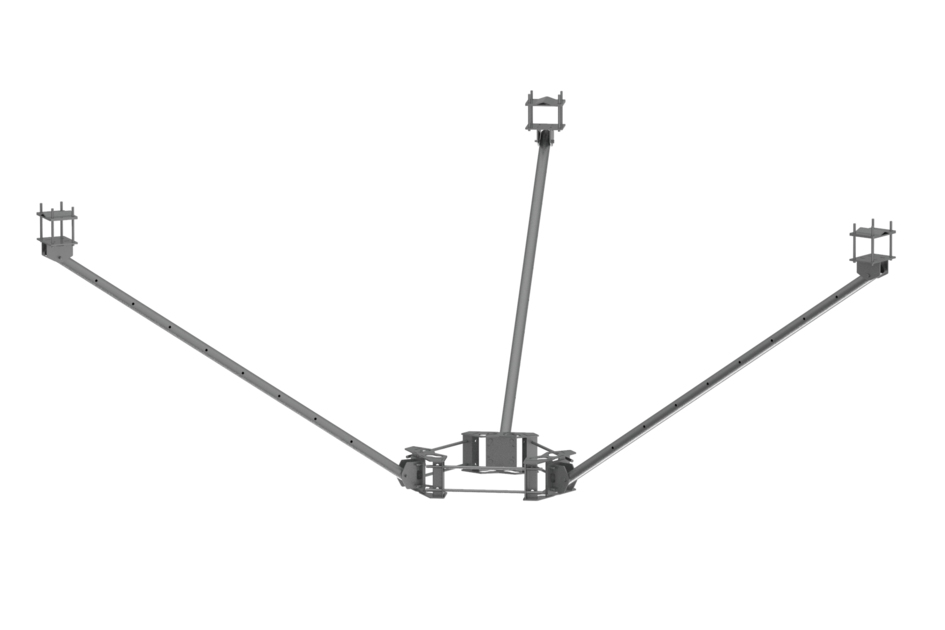

Field Adjustable Monopole Load Distribution Reinforcement Kit, 3 Sector, 10" to 30" OD, 10' Adustable Kicker
Specifications
Product Classification
| Product Type | Reinforcement kit |
General Specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 3048 mm | 120 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Attachment hardware | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 202.438 kg | 446.3 lb |
Product Classification
| Product Type | Reinforcement kit |
General Specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 3048 mm | 120 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Attachment hardware | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 202.438 kg | 446.3 lb |
