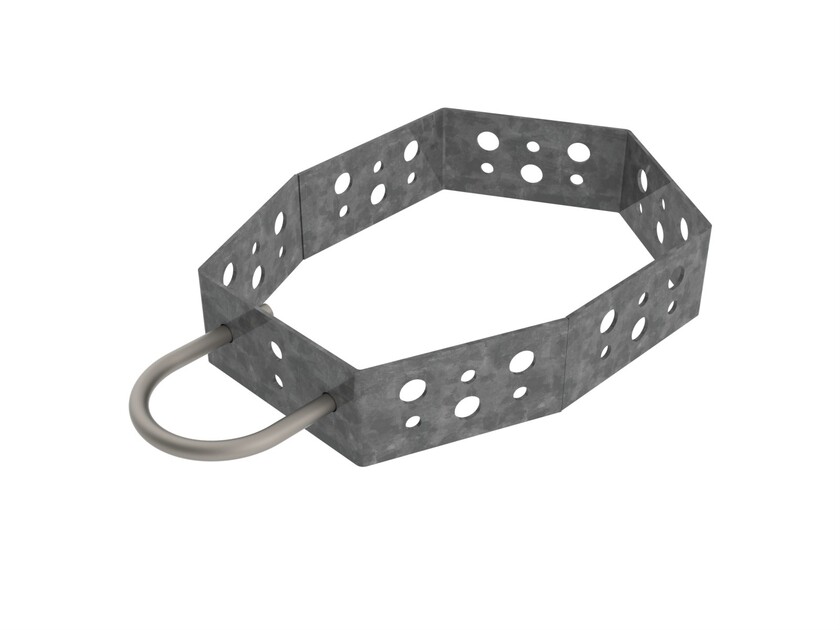

CS-BRL
Cluster Support Bracket, 18 lines, for 3-1/2 in OD round members
Specifications
Product Classification
Product Type | Support bracket |
General Specifications
Application | Cluster support |
Cable Runs, quantity | 18 |
Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
Height | 4000.5 mm | 157.5 in |
Width | 279.4 mm | 11 in |
Length | 381 mm | 15 in |
Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
Material Type | Hot dip galvanized steel |
Packaging and Weights
Included | Hardware | Support brackets |
Packaging quantity | 1 |
Weight, net | 2.3 kg | 5.071 lb |
Product Classification
Product Type | Support bracket |
General Specifications
Application | Cluster support |
Cable Runs, quantity | 18 |
Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
Height | 4000.5 mm | 157.5 in |
Width | 279.4 mm | 11 in |
Length | 381 mm | 15 in |
Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
Material Type | Hot dip galvanized steel |
Packaging and Weights
Included | Hardware | Support brackets |
Packaging quantity | 1 |
Weight, net | 2.3 kg | 5.071 lb |
