221213

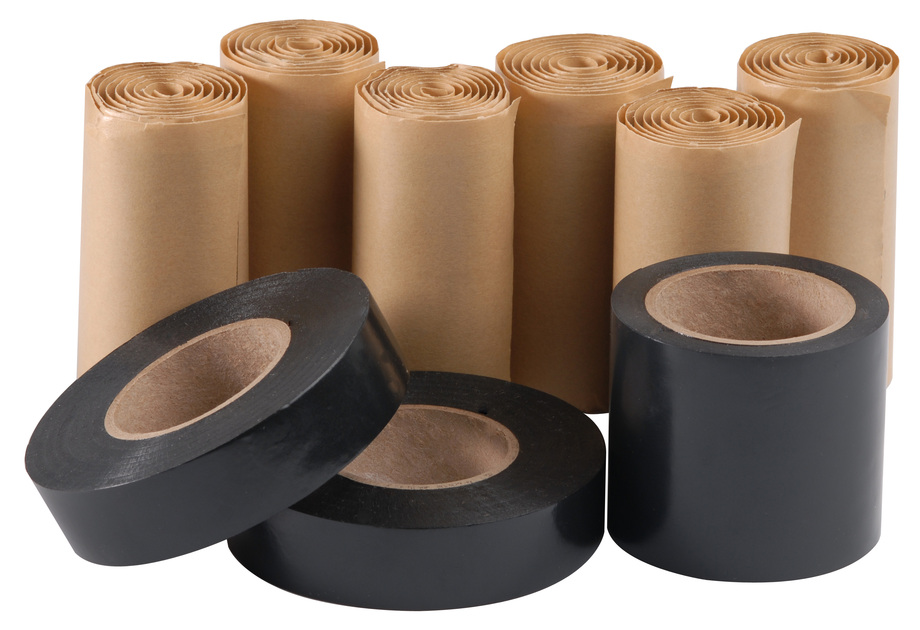

Weatherproofing Kit for Connectors and Splices, includes butyl rubber and PVC tape
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Weatherproofing tape
Ordering Note CommScope® standard product (Global)

General Specifications

Application Provides additional moisture seal for cable connections
Applications per Kit Four 1/2 in–7/8 in | Two 1/2 in–2-1/4 in | Twelve 1/2 in–7/8 in to device | Twelve 1/2 in–1/2 in
Harmonized System (HS) Code 854420 (Coaxial cable and other coaxial electric conductors)

Dimensions

Nominal Size 1-1/4 in | 1/4 in | 5/8 in | 2-1/4 in | 3/8 in | 1-5/8 in | 7/8 in | 1/2 in

Material Specifications

Material Type Butyl rubber tape | PVC tape

Environmental Specifications

UV Resistance Test Method Butyl test method in QUV weatherometer cycle of 8 hours UV at 150 °F then 4 hours of condensation at 104 °F | PVC tape test method UL 510, ASTM D1000
UV Resistance, minimum with no degradation ≥1000 hours
Weather Resistance Test Method 04AS00-03.6.0 | MIL-STD-1344A, Method 1002

Packaging and Weights

Height, packed 195.58 mm | 7.7 in
Width, packed 175.26 mm | 6.9 in
Length, packed 96.52 mm | 3.8 in
Included Two rolls of 3/4 in PVC tape | One roll of 2 in PVC tape | Six rolls of 2-1/2 in butyl rubber tape
Packaging quantity 1
Weight, gross 1.52 kg | 3.351 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
