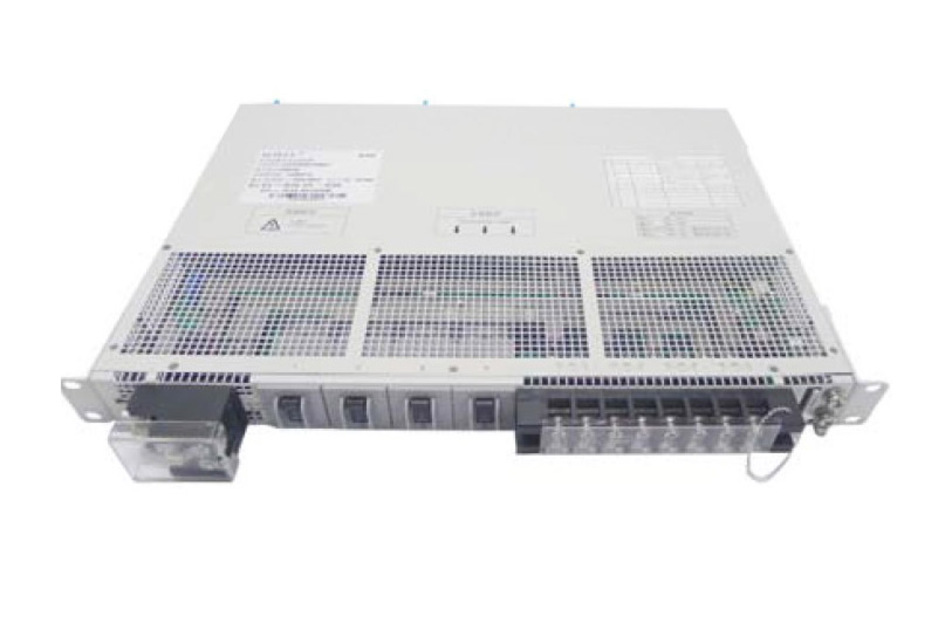

PS-LCC-57V-2000

PowerShift® 7,695 Watt Constant Voltage DC-DC Converter

Specifications
Finish making your selections or clear them to view relevant specifications.
View Download
Find a Partner
Support
Features and Benefits
  • Reduced capital/operating expenditures
  • Engineering flexibility
  • Future-ready design

Product Classification

Product Type DC/DC Converter
Product Brand PowerShift®

General Specifications

Circuits per Module, quantity 1 circuit per module | 3 independent modules (rear install)
Input/Output Interface Front 2 input / 3 output

Dimensions

Height 41.402 mm | 1.63 in
Width 482.600 mm | 19 in
Depth 351.79 mm | 13.85 in

Electrical Specifications

Input Current Range 0-219 A @ -38Vdc
Input Voltage Range -38 to -57 Vdc
Input Voltage, nominal -54 Vdc
Output Current Range 0–45 A
Output Power Connections, quantity 3
Output Power per Circuit, maximum 2565 W
Output Voltage, nominal -57 Vdc
Electrical Safety Standard CE | UL | cUL
Power Efficiency, nominal 96 %
Total Output Power 7695 W

Environmental Specifications

Relative Humidity 95%, non-condensing
Ambient Temperature -40 °C | -40 °F | 55 °C | 131.000 °F
Mean Time Between Failures (MTBF) at Temperature 300,000 h @ 25 °C

Packaging and Weights

Packaging quantity 1
Weight, net 7.484 kg | 16.5 lb
