4110273 | 2312V WTRL 1/2" PLEN TRUNK

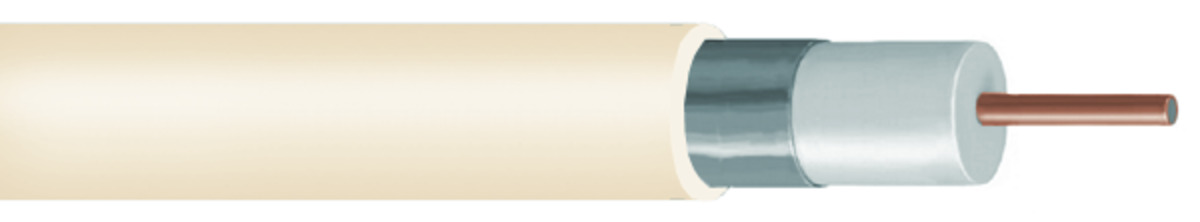

75 Ohm P3® 500 JCAP 1/2" Plenum Trunk and Distribution Cable, white flame retardant PVC jacket
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.620 0.190
10.0 MHz 0.850 0.260
50.0 MHz 2.000 0.610
85.0 MHz 2.230 0.680
100.0 MHz 2.980 0.910
200.0 MHz 4.490 1.370
204.0 MHz 3.510 1.070
400.0 MHz 7.120 2.170
700.0 MHz 10.530 3.210
900.0 MHz 12.200 3.720
1002.0 MHz 13.670 4.170
1218.0 MHz 15.910 4.850
1400.0 MHz 17.760 5.410
1500.0 MHz 18.760 5.720
1600.0 MHz 19.750 6.020
1700.0 MHz 20.740 6.320
1794.0 MHz 21.660 6.600
1800.0 MHz 21.720 6.620

Product Classification

Product Type Coaxial hardline cable
Product Brand P3®
Warranty One year

General Specifications

Cable Type 500 series
Construction Type Swaged
Jacket Color White
Short Description P3 500 JCAP (2312V)

Dimensions

Cable Length 2400 ft | 731.52 m
Diameter Over Center Conductor, nominal 0.109 in | 2.769 mm
Diameter Over Dielectric, nominal 0.452 in | 11.481 mm
Diameter Over Jacket, nominal 0.536 in | 13.614 mm
Diameter Over Outer Conductor, nominal 0.5 in | 12.7 mm
Jacket Thickness, nominal 0.02 in | 0.508 mm
Outer Conductor Thickness, nominal 0.024 in | 0.61 mm

Electrical Specifications

Capacitance 16 pF/ft | 52.493 pF/m
Capacitance Tolerance ±1.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal 1.42 ohms/kft | 4.659 ohms/km
dc Resistance, Loop, nominal 1.79 ohms/kft | 5.873 ohms/km
dc Resistance, Outer Conductor, nominal 0.37 ohms/kft | 1.214 ohms/km
Jacket Spark Test Voltage 1000 Vac
Nominal Velocity of Propagation (NVP) 84 %
Structural Return Loss 24 dB @ 5–450 MHz | 20 dB @ 450–1000 MHz

Material Specifications

Center Conductor Material Copper-clad aluminum
Dielectric Material FFEP
Jacket Material Fire retardant PVC
Outer Conductor Material Aluminum

Mechanical Specifications

Minimum Bend Radius, standard 8 in | 203.2 mm
Pulling Tension, maximum 300 lb | 136.078 kg

Environmental Specifications

Environmental Space Indoor | Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Listing NEC Article 820 | CATVP | CMP

Packaging and Weights

Packaging Type Reel
Weight, gross 158 lb/kft | 21.844 kg/km

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.620 0.190
10.0 MHz 0.850 0.260
50.0 MHz 2.000 0.610
85.0 MHz 2.230 0.680
100.0 MHz 2.980 0.910
200.0 MHz 4.490 1.370
204.0 MHz 3.510 1.070
400.0 MHz 7.120 2.170
700.0 MHz 10.530 3.210
900.0 MHz 12.200 3.720
1002.0 MHz 13.670 4.170
1218.0 MHz 15.910 4.850
1400.0 MHz 17.760 5.410
1500.0 MHz 18.760 5.720
1600.0 MHz 19.750 6.020
1700.0 MHz 20.740 6.320
1794.0 MHz 21.660 6.600
1800.0 MHz 21.720 6.620

Product Classification

Product Type Coaxial hardline cable
Product Brand P3®
Warranty One year

General Specifications

Cable Type 500 series
Construction Type Swaged
Jacket Color White
Short Description P3 500 JCAP (2312V)

Dimensions

Cable Length 2400 ft | 731.52 m
Diameter Over Center Conductor, nominal 0.109 in | 2.769 mm
Diameter Over Dielectric, nominal 0.452 in | 11.481 mm
Diameter Over Jacket, nominal 0.536 in | 13.614 mm
Diameter Over Outer Conductor, nominal 0.5 in | 12.7 mm
Jacket Thickness, nominal 0.02 in | 0.508 mm
Outer Conductor Thickness, nominal 0.024 in | 0.61 mm

Electrical Specifications

Capacitance 16 pF/ft | 52.493 pF/m
Capacitance Tolerance ±1.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal 1.42 ohms/kft | 4.659 ohms/km
dc Resistance, Loop, nominal 1.79 ohms/kft | 5.873 ohms/km
dc Resistance, Outer Conductor, nominal 0.37 ohms/kft | 1.214 ohms/km
Jacket Spark Test Voltage 1000 Vac
Nominal Velocity of Propagation (NVP) 84 %
Structural Return Loss 24 dB @ 5–450 MHz | 20 dB @ 450–1000 MHz

Material Specifications

Center Conductor Material Copper-clad aluminum
Dielectric Material FFEP
Jacket Material Fire retardant PVC
Outer Conductor Material Aluminum

Mechanical Specifications

Minimum Bend Radius, standard 8 in | 203.2 mm
Pulling Tension, maximum 300 lb | 136.078 kg

Environmental Specifications

Environmental Space Indoor | Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Listing NEC Article 820 | CATVP | CMP

Packaging and Weights

Packaging Type Reel
Weight, gross 158 lb/kft | 21.844 kg/km

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
