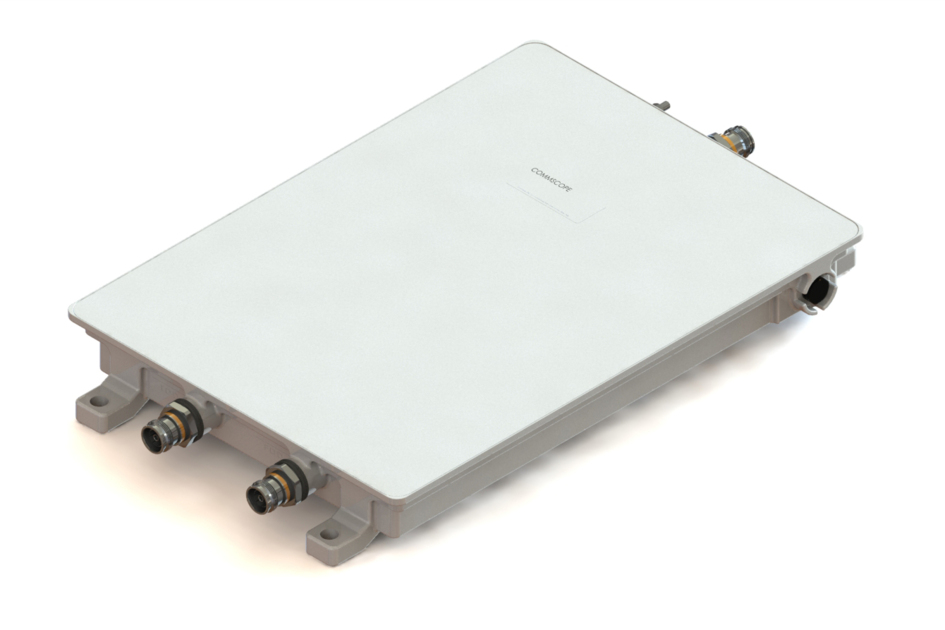

E14F05P97

Single Diplexer, FDD/TDD 2600, dc block on all ports

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Single configuration
Designed for network Modernization, introduction of LTE2600 on existing site

Specifications

Product Classification

Product Type

Diplexer

General Specifications

Color	Gray
Modularity	1-Single
Mounting	Frame \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	4.3-10 Female

Dimensions

Height	390 mm \| 15.354 in
Width	276 mm \| 10.866 in
Depth	52 mm \| 2.047 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
License Band, Band Pass	IMT 2600 \| TDD 2600

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method	No dc/AISG pass-through
dc/AISG Pass-through, combiner	dc/AISG blocking on all ports
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical Specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	FDD 2500-2569.5/2620.5-2690	TDD 2575.5-2614.5
License Band	IMT 2600, Band Pass	TDD 2600, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz	2500–2569.5 2620.5–2690	2575.5–2614.5
Insertion Loss, maximum, dB	2.00	2.00
Insertion Loss, typical, dB	0.70	1.00
Return Loss, minimum, dB	18	18
Isolation, minimum, dB	82	82
Input Power, RMS, maximum, W	30	30
Input Power, PEP, maximum, W	360	360
3rd Order PIM, maximum, dBc	-152	-152
3rd Order PIM Test Method	’Two +39 dBm CW Tones	’Two +39 dBm CW Tones

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature	-35 °C to +50 °C (-31 °F to +122 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Ingress Protection Test Method	IEC 60529:2001, IP55 \| IEC 60529:2001, IP67

Packaging and Weights

Included	Mounting hardware
Volume	5.6 L
Weight, net	5.6 kg \| 12.346 lb
