UGBKIT-0412

Base Product: GROUNDING-BUSS-SERIES

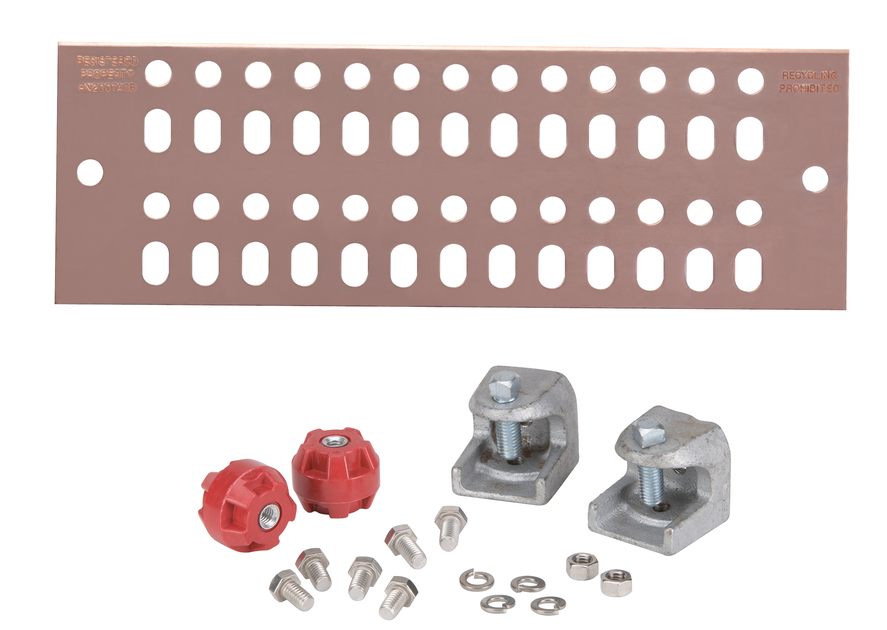

Copper Ground Buss Bar, 1/4 in x 4 in x 12 in (6.4 mm x 101.6 mm x 304.8 mm)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Grounding bar
Product Brand HELIAX®
Ordering Note CommScope® standard product (Global)

Dimensions

Height 101.6 mm | 4 in
Length 304.8 mm | 12 in
Material Thickness 6.35 mm | 0.25 in
Hole Size 7/16 in | 7/16 in x 5/8 in
Hole Distance, center to center 19.05 mm | 0.75 in

Material Specifications

Material Type Copper

Packaging and Weights

Height, packed 454.66 mm | 17.9 in
Width, packed 248.92 mm | 9.8 in
Length, packed 50.8 mm | 2 in
Included Galvanized angle adapter | Grounding bar | Insulators | Mounting brackets | Universal hardware
Packaging quantity 1
Weight, gross 3.36 kg | 7.408 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
