ZB-H4

Base Product: WGB-AND-MISC-CABLE-SUPPORTS

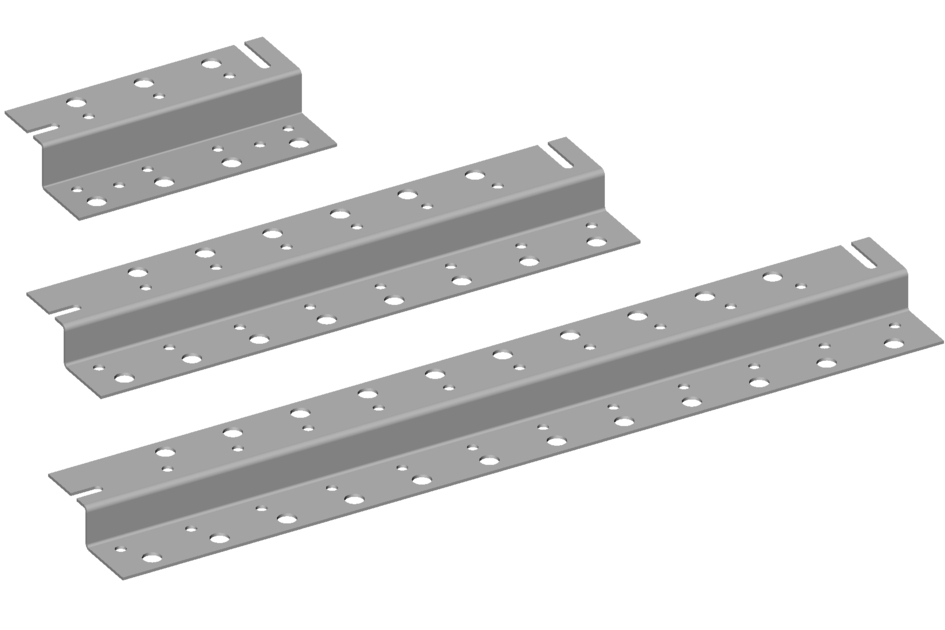

Horizontal Z-bracket, 11 in, for seven coaxial cable runs

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Product Type Z-Bracket
Ordering Note ANDREW® standard product (Global)

General Specifications

Cable Runs, quantity 7
Hole, quantity 7
Mounting Walls

Dimensions

Height 50.8 mm | 2 in
Width 152.4 mm | 6 in
Length 279.4 mm | 11 in
Hole Size 3/4 in | 7/16 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and Weights

Included Z-bracket
Packaging quantity 1
Weight, net 1.2 kg | 2.646 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Product Type Z-Bracket
Ordering Note ANDREW® standard product (Global)

General Specifications

Cable Runs, quantity 7
Hole, quantity 7
Mounting Walls

Dimensions

Height 50.8 mm | 2 in
Width 152.4 mm | 6 in
Length 279.4 mm | 11 in
Hole Size 3/4 in | 7/16 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and Weights

Included Z-bracket
Packaging quantity 1
Weight, net 1.2 kg | 2.646 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Assembly Drawing

Horizontal Z-Bracket, 11 in
