RR-APEX4-E
Base Product: RRU-MOUNTS

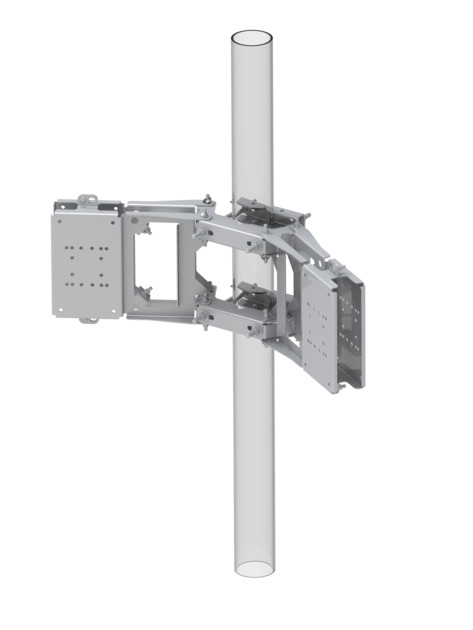

Apex RRU Mount for up to 4 Ericsson Radios - Mounts to Extended Spine on G2RHDX & RHDXL Series Mounts
Features and Benefits
Designed for G2 RHDX Series Mounts with Extended Spine
- Increased versatility and stability
- More RRU mounting available, reducing need for additional
mounts
-Features integrated lifting points for safe and efficient hoisting of radios to the mounting location
- Supports all typical RRH units from Ericsson, ERS and RRUS
- Better load management and Less structure stress
- Angled RRU brackets for stronger, more versatile mounting
- Decreased PIM from radio relocation (pulls radio from near
field)
- Decreased antenna pipe loading
- Compatible with towers and monopoles
- FITS 2-3/8" OD ~ 6" OD PIPES
- FOR 90 DEGREE ANGLES UP TO 4.5"
- FOR 60 DEGREE ANGLES UP TO 6.0"
- Increased versatility and stability
- More RRU mounting available, reducing need for additional
mounts
-Features integrated lifting points for safe and efficient hoisting of radios to the mounting location
- Supports all typical RRH units from Ericsson, ERS and RRUS
- Better load management and Less structure stress
- Angled RRU brackets for stronger, more versatile mounting
- Decreased PIM from radio relocation (pulls radio from near
field)
- Decreased antenna pipe loading
- Compatible with towers and monopoles
- FITS 2-3/8" OD ~ 6" OD PIPES
- FOR 90 DEGREE ANGLES UP TO 4.5"
- FOR 60 DEGREE ANGLES UP TO 6.0"
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Remote radio head unit mount |
| Ordering Note | CommScope® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round and angle legs |
Dimensions
| Height | 388.620 mm | 15.3 in |
| Platform Width | 441.960 mm | 17.4 in |
| Length | 1031.240 mm | 40.6 in |
| Mounting Diameter, maximum | 152.400 mm | 6 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 21.473 kg | 47.34 lb |
Product Classification
| Portfolio | CommScope® |
| Product Type | Remote radio head unit mount |
| Ordering Note | CommScope® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round and angle legs |
Dimensions
| Height | 388.620 mm | 15.3 in |
| Platform Width | 441.960 mm | 17.4 in |
| Length | 1031.240 mm | 40.6 in |
| Mounting Diameter, maximum | 152.400 mm | 6 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 21.473 kg | 47.34 lb |
