MD-CS

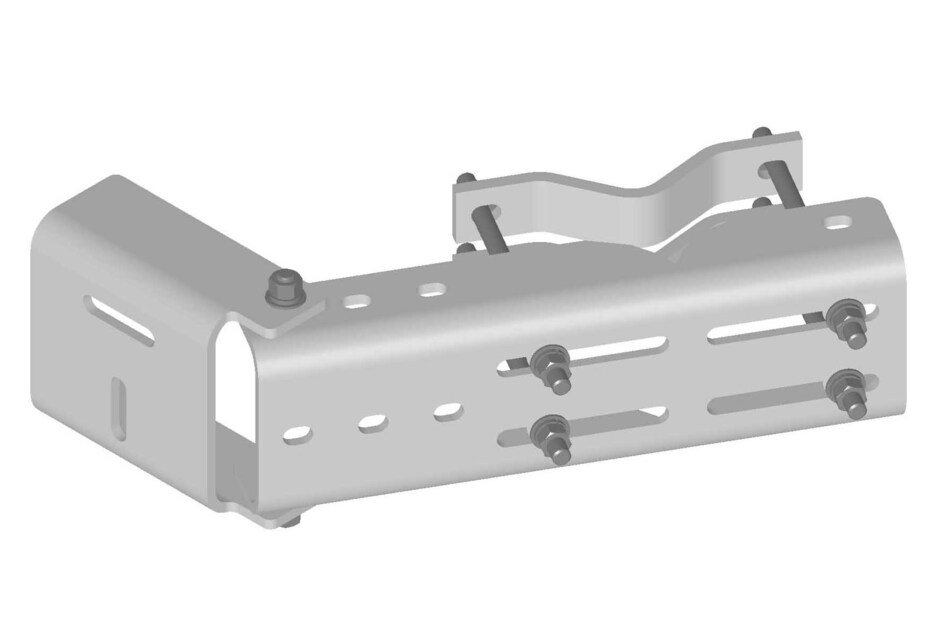

Universal Microwave Strut Support for 8 in round or angle 60° or 6 in angle 90° legs

Specifications
Finish making your selections or clear them to view relevant specifications.
View Download
Find a Partner
Support

Product Classification

Product Type Microwave strut support

General Specifications

Mounting Straight or tapered legs up to 203.2 mm (8 in) OD
Pipe, quantity 0
Tower Taper Non-tapered | Tapered

Dimensions

Height 152.4 mm | 6 in
Width 304.8 mm | 12 in
Length 203.2 mm | 8 in
Mounting Diameter, maximum 203.2 mm | 8 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact steelproducts@commscope.com or call 800-255-1479

Packaging and Weights

Included Attachment hardware | Clamps
Packaging quantity 1
Weight, net 24.9 kg | 54.895 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
