FGSB-MFAW-A

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

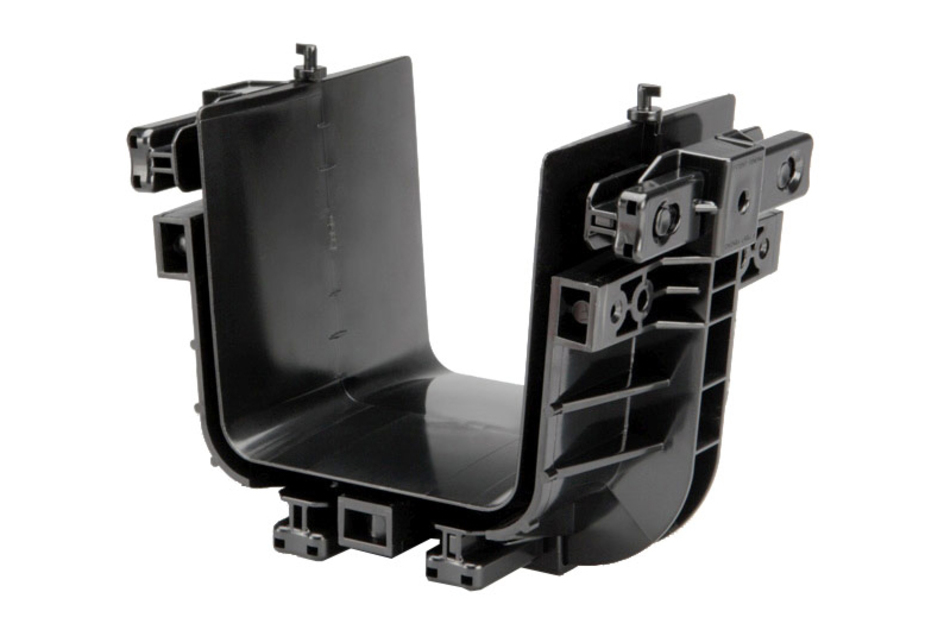

FiberGuide® Snap-Fit Junction, 4x4in, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber raceway joiner
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Snap-together design
Color Black
Orientation Horizontal
Section Type Joiner section

Dimensions

Height 139.954 mm | 5.510 in
Width 107.95 mm | 4.250 in
Length 172.6184 mm | 6.796 in
System Dimensions 102 mm x 102 mm (4 in x 4 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Packaging quantity 1
Weight, net 0.156 kg | 0.344 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber raceway joiner
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Snap-together design
Color Black
Orientation Horizontal
Section Type Joiner section

Dimensions

Height 139.954 mm | 5.510 in
Width 107.95 mm | 4.250 in
Length 172.6184 mm | 6.796 in
System Dimensions 102 mm x 102 mm (4 in x 4 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Packaging quantity 1
Weight, net 0.156 kg | 0.344 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
