FACT-NG4-CHASSIS

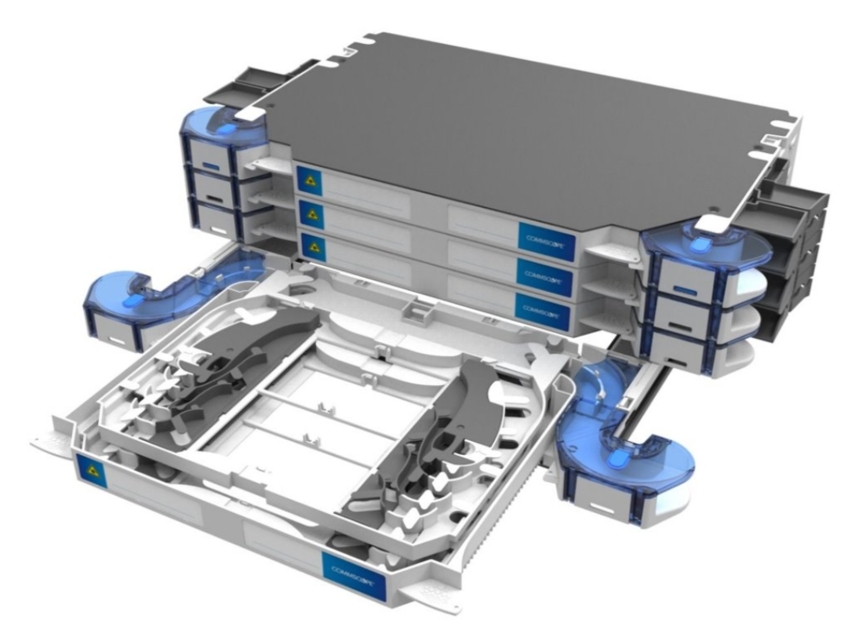

The building blocks of the FACT® optical distribution frame system are the FACT® chassis. FACT® chassis can be deployed individually as a single-element chassis, orup to six similar elements can be combined into high fiber-count FACT® chassis.The single-element FACT® chassis measures 30.95 mm (1.22 in.) tall, 30 percent less than the standard HU/1RU (44.45 mm/1.75 in.). Each FACT® element features two hinged trays, providing full front access to both sides of all connections and clear visibility of all ports.


The universal FACT NG4 chassis supports NG4access connectivity packs and modules that snap into the FACT NG4 chassis. In addition to SC, LC and MPO adaptor packs, it also accommodates MPO-to-LC or MPO-to-SC modules, cabled modules and single high value-added modules (VAMs).

The FACT NG4 element includes two trays; each element can accommodate:

• Four LC or SC adaptor packs
• Two MPO modules
• Two 24-fiber LC cabled modules
• Two 12-fiber SC cabled modules
• Two single high value added modules (VAMs)

The FACT® patch chassis is available in 6 height versions:

• 1E
• 2E
• 3E
• 4E
• 5E
• 6E
