760210757 | HD-4U-FX

Base Product: HD-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

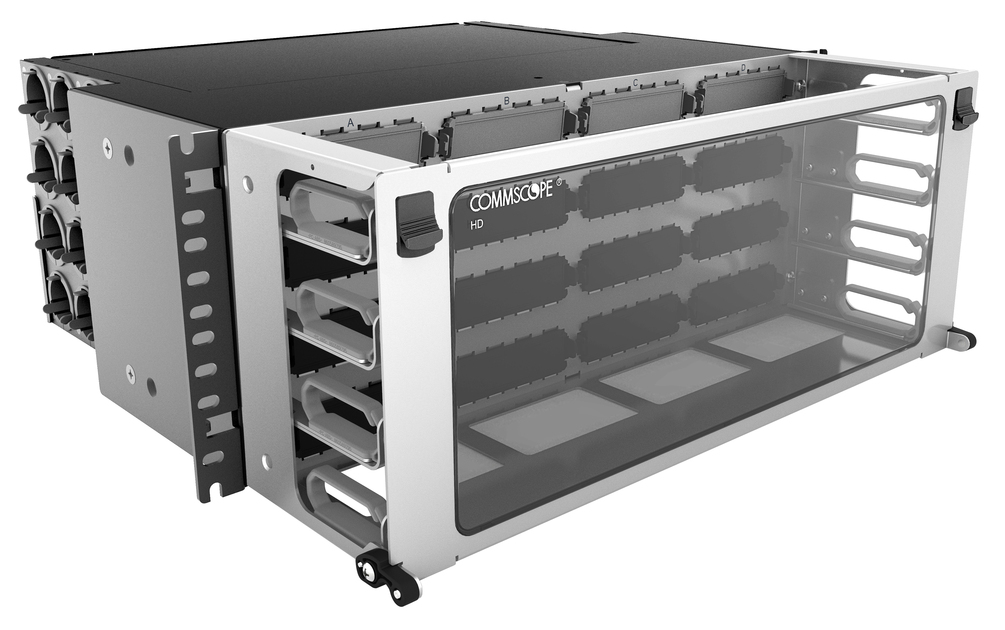

High Density 4U modular cassette fixed Panel, accepts (16) G2 modules or MPO panels, providing up to 192 duplex LC ports or up to 128 MPO ports

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber patch panel
Product Series HD

General Specifications

Application Accepts sixteen G2 modular cassettes
Color Black + Silver gray (front)
Intelligence Type iPatch® ready
Interface, front Unloaded
Rack Type EIA 19 in
Rack Units 4
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 177.8 mm | 7 in
Width 482.6 mm | 19 in
Depth 467.11 mm | 18.39 in

Material Specifications

Material Type Steel

Environmental Specifications

Flammability Rating UL 94 V-0
Safety Standard UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 7.257 kg | 16 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
