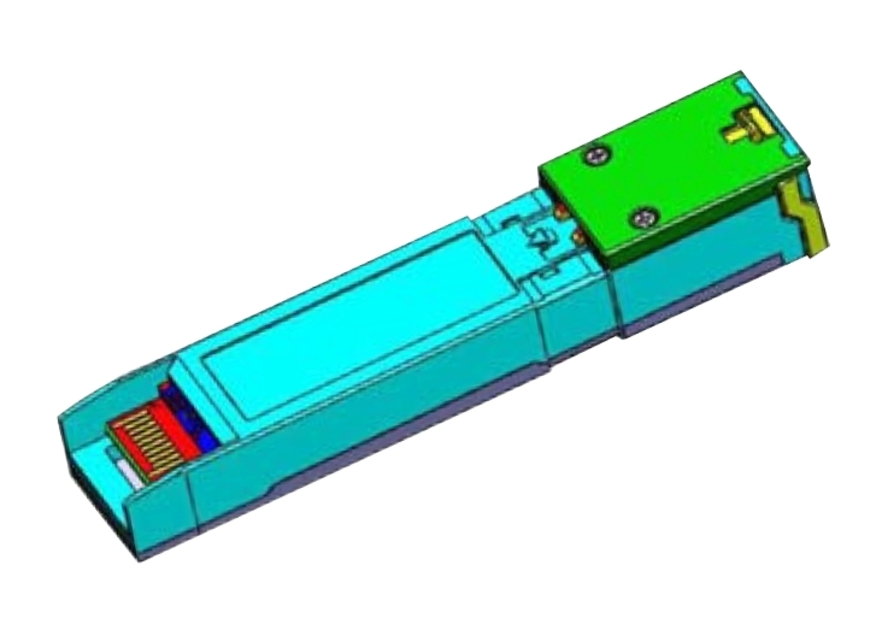

619632-001-00

CommScope Combo XGS-PON/GPON Optical Module, SFP+, Single fiber bi-directional data links with Tx1: 9.953 Gbps Rx1: 9.953 Gbps / 2.488 Gbps Tx2: 2.488 Gbps Rx2: 1.244 Gbps

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

FEATURES

Combination of XGS-PON OLT and GPON OLT optical transceivers in an SFP+ package
Complies with ITU-T G.9807.1 N2 class
Complies with ITU-T G.984.2 C+ class
Single fiber bi-directional data links with
- Tx1: 9.953 Gbps
- Rx1: 9.953 Gbps / 2.488 Gbps
- Tx2: 2.488 Gbps
- Rx2: 1.244 Gbps
1577 nm continuous-mode transmitter with EML laser
1490 nm continuous-mode transmitter with DFB laser
1270 nm burst-mode receiver with APD-TIA
1310 nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic monitoring
+3.3V power supply, 3.5W power consumption
RoHS With Exemptions 7C(I)
20km Reach
Operating temp: -40 ~ 90°C
Supports 20 Pin-out

Specifications

Product Classification

Product Type	Optical transceiver
Product Series	SFP

General Specifications

Reflectance, maximum	–12 dB @ 1260–1280 nm (XGS) \| –20 dB @ 1290–1330 nm (GPON)
Differential Power, maximum	20 dB
Transmission Distance, maximum	20 km

Dimensions

Height	12.294 mm \| 0.484 in
Width	13.894 mm \| 0.547 in
Length	64.287 mm \| 2.531 in

Dimension Drawing

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Input Current, maximum	1115 mA
Input Voltage	+3.14 to +3.47 Vdc
Input Voltage, maximum	3.6 V
Power Consumption, maximum	3.5 W
Receiver Data Output Differential Swing Range	300–800 mVpp @ 2.488 Gbps \| 300–800 mVpp @ 9.953 Gbps \| 600–1600 mVpp @ 1.244 Gbps
Receiver Data Recovery Time, maximum	100 ns @ 9.953 Gbps \| 25.6 ns @ 1.244 Gbps \| 25.6 ns @ 2.488 Gbps
Receiver Loss of Signal Assert Time, maximum	100 ns @ 9.953 Gbps \| 50 ns @ 1.244 Gbps \| 50 ns @ 2.488 Gbps
Receiver Loss of Signal de-Assert Time, maximum	12.8 ns @ 1.244 Gbps \| 12.8 ns @ 2.488 Gbps \| 50 ns @ 9.953 Gbps
Receiver Loss of Signal Detected Voltage High, minimum	2.4 V
Receiver Loss of Signal Detected Voltage Low, maximum	0.4 V
Transmitter Data Input Differential Swing Range	200–850 mVpp @ 2.488 Gbps \| 200–850 mVpp @ 9.953 Gbps
Differential Impedance, typical	100 ohm
Transmitter Fault Indication Voltage High, mminimum	2.4 V
Transmitter Fault Indication Voltage Low, maximum	0.4 V

Optical Specifications

Optical Isolation, minimum	–30 dB (from external below 1260–1280 nm) \| –30 dB (from external below 1342–1650 nm)
Optical Port Interface	SC/UPC
Receiver Center Wavelength	1270 nm nominal (1260–1280 nm) @ 2.488 Gbps \| 1270 nm nominal (1260–1280 nm) @ 9.953 Gbps \| 1310 nm nominal (1290–1310 nm) @ 1.244 Gbps
Receiver Loss of Signal Assert Level, minimum	–30 dBm @ 9.953 Gbps \| –31 dBm @ 2.488 Gbps \| –33 dBm @ 1.244 Gbps
Receiver Loss of Signal de-Assert, maximum	–45 dBm @ 1.244 Gbps \| –45 dBm @ 2.488 Gbps \| –45 dBm @ 9.953 Gbps
Receiver Saturation, minimum	–12 dBm @ 1.244 Gbps \| –7 dBm @ 9.953 Gbps \| –9 dBm @ 2.488 Gbps
Receiver Sensitivity, maximum	–28 dBm @ 9.953 Gbps \| –29.5 dBm @ 2.488 Gbps \| –32 dBm @ 1.244 Gbps
Transmitter Center Wavelength	1490 nm nominal (1480–1500 nm) @ 2.488 Gbps \| 1577 nm nominal (1575–1580 nm) @ 9.953 Gbps
Transmitter Extinction Ratio, minimum	8.2 dB
Transmitter Reflected Power Tolerance, minimum	-15 dB
Transmitter Launch Power Range	+4 to +7 dBm
Transmitter Launch Power OFF Transmitter, maximum	–39 dBm @ 9.953 Gbps \| –40 dBm @ 2.488 Gbps

Environmental Specifications

Operating Temperature	-40 °C to +90 °C (-40 °F to +194 °F)
Operating Humidity	5%–85%
