HBXX-6517DS-VTM | HBXX-6517DS-A2M
4-port sector antenna, 4x 1710–2180 MHz, 65° HPBW, RET compatible
Specifications
Features and Benefits
- Superior azimuth tracking and pattern symmetry with excellent passive intermodulation suppression
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |

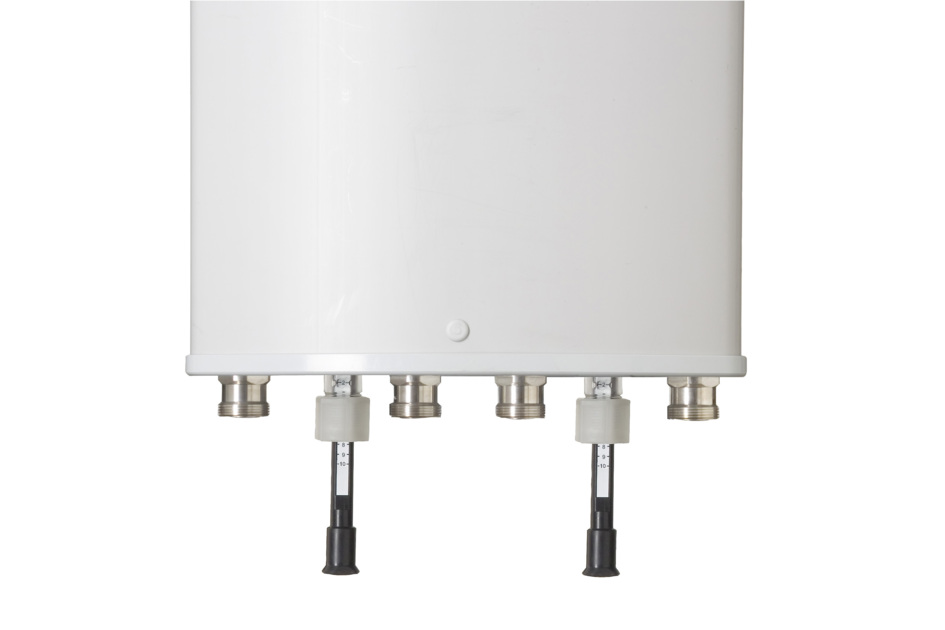

| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-6517DS-A2M |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 166 mm | 6.535 in |
| Length | 1906 mm | 75.039 in |
| Net Weight, without mounting kit | 18.5 kg | 40.785 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 19.0 | 19.1 | 19.2 |
| Beamwidth, Horizontal, degrees | 67 | 66 | 65 |
| Beamwidth, Vertical, degrees | 5 | 4.7 | 4.4 |
| Beam Tilt, degrees | 0–6 | 0–6 | 0–6 |
| USLS (First Lobe), dB | 18 | 18 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| CPR at Boresight, dB | 21 | 22 | 21 |
| CPR at Sector, dB | 10 | 11 | 9 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 668.0 N @ 150 km/h (150.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 777.0 N @ 150 km/h (174.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 402 mm | 15.827 in |
| Depth, packed | 292 mm | 11.496 in |
| Length, packed | 2036 mm | 80.158 in |
| Weight, gross | 28.2 kg | 62.17 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-6517DS-A2M |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 166 mm | 6.535 in |
| Length | 1906 mm | 75.039 in |
| Net Weight, without mounting kit | 18.5 kg | 40.785 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 19.0 | 19.1 | 19.2 |
| Beamwidth, Horizontal, degrees | 67 | 66 | 65 |
| Beamwidth, Vertical, degrees | 5 | 4.7 | 4.4 |
| Beam Tilt, degrees | 0–6 | 0–6 | 0–6 |
| USLS (First Lobe), dB | 18 | 18 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| CPR at Boresight, dB | 21 | 22 | 21 |
| CPR at Sector, dB | 10 | 11 | 9 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 668.0 N @ 150 km/h (150.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 777.0 N @ 150 km/h (174.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 402 mm | 15.827 in |
| Depth, packed | 292 mm | 11.496 in |
| Length, packed | 2036 mm | 80.158 in |
| Weight, gross | 28.2 kg | 62.17 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
