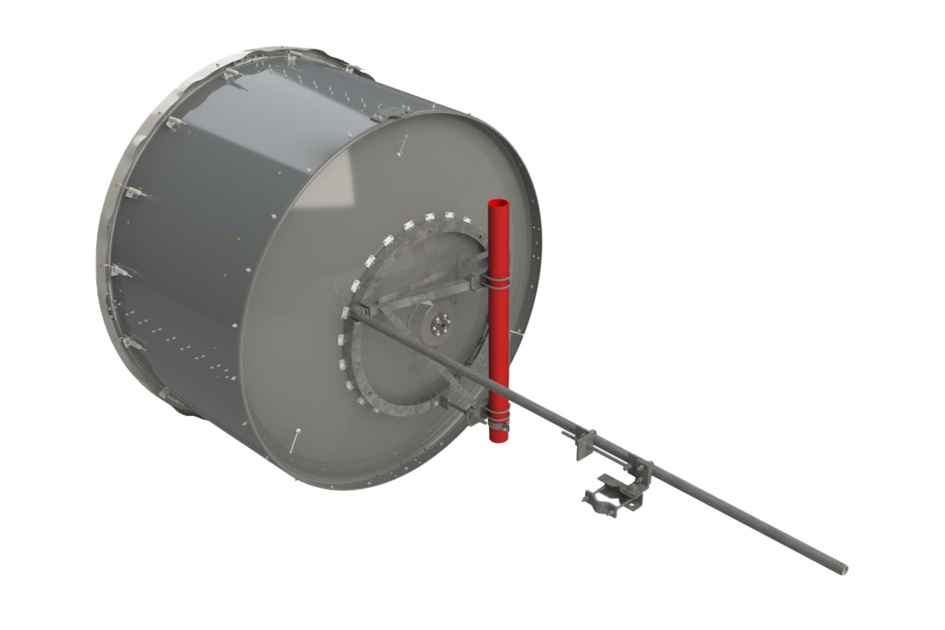

USX8-13W

Base Product

2.4m | 8ft Sentinel® Ultra High Performance, Super High XPD Antenna, dual-polarized, 12.200 – 13.250 GHz

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of USX8-13W by selecting options

	Product	Product Brand	Product Type	Antenna Type	Operating Frequency Band	Diameter, nominal	Antenna Input
	USX8-13W-2GF 2.4m \| 8ft Sentinel® Ultra High Performance, Super High XPD Antenna, dual-polarized, 12.200 – 13.250 GHz, grey, PBR120 flange Specifications	Sentinel®	Microwave antenna	USX - Sentinel® Ultra High Performance \| Super High XPD Antenna \| dual-polarized	12.200 – 13.250 GHz	2.4 m \| 8 ft	PBR120
	USX8-13W-3GF 2.4m \| 8ft Sentinel® Ultra High Performance, Super High XPD Antenna, dual-polarized, 12.200 – 13.250 GHz, grey, UBR120 flange Specifications	Sentinel®	Microwave antenna	USX - Sentinel® Ultra High Performance \| Super High XPD Antenna \| dual-polarized	12.200 – 13.250 GHz	2.4 m \| 8 ft	UBR120

Specifications

Product Classification

Product Type

Microwave antenna

General Specifications

Antenna Type	USX - Sentinel® Ultra High Performance, Super High XPD Antenna, dual-polarized
Polarization	Dual
Side Struts, Included	1
Side Struts, Optional	4

Dimensions

Diameter, nominal

2.4 m | 8 ft

Electrical Specifications

Operating Frequency Band	12.200 – 13.250 GHz
Gain, Low Band	47.4 dBi
Gain, Mid Band	47.6 dBi
Gain, Top Band	47.7 dBi
Boresite Cross Polarization Discrimination (XPD)	40 dB
Front-to-Back Ratio	82 dB
Beamwidth, Horizontal	0.7 °
Beamwidth, Vertical	0.7 °
Return Loss	26 dB
VSWR	1.1
Radiation Pattern Envelope Reference (RPE)	7403
Electrical Compliance	ACMA FX03_13a \| ETSI 302 217 Class 4 \| US FCC Part 101A
Cross Polarization Discrimination (XPD) Electrical Compliance	ETSI EN 302217 XPD Category 3

Mechanical Specifications

Compatible Mounting Pipe Diameter	115 mm \| 4.5 in
Fine Azimuth Adjustment Range	±5°
Fine Elevation Adjustment Range	±5°
Wind Speed, operational	201 km/h \| 124.896 mph
Wind Speed, survival	200 km/h \| 124.274 mph

Antenna Dimensions and Mounting Information

Click on image to enlarge.

Wind Forces at Wind Velocity Survival Rating

Axial Force (FA)	10599 N \| 2382.751 lbf
Angle α for MT Max	-140 °
Side Force (FS)	6268 N \| 1409.103 lbf
Twisting Moment (MT)	-7647 N-m \| -67681.653 in lb
Force on Inboard Strut Side	11263 N \| 2532.024 lbf
Zcg without Ice	624 mm \| 24.567 in
Zcg with 1/2 in (12 mm) Radial Ice	765 mm \| 30.118 in
Weight with 1/2 in (12 mm) Radial Ice	364 kg \| 802.482 lb

Wind Forces at Wind Velocity Survival Rating Image
