760235373 | MST-04FX00-U0150UM-IE-5MM

  • Available in:
  • EMEA
DLX® Mini-MST, Fiber Optic Multiport Service Terminal, 4-port, round cable, 150 m
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
  • Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network
  • Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Specifications

Product Classification

Regional Availability EMEA
Product Type Access terminal, without splitter/tap
Product Brand DLX®
Product Series Mini-MST

General Specifications

Cable Type Armored - Round - Loose Tube
Cable, quantity 1
Distribution Type 4 ports
Enclosure Color Gray
Mounting Handhole | Wall
Port Type Hardened mini-size DLX
Port, quantity 4
Splitter, quantity 0
Stub Type Stub tail

Dimensions

Height 214.8 mm | 8.457 in
Width 150 mm | 5.906 in
Cable Length 150 m | 492.126 ft
Depth 58.7 mm | 2.311 in
Outer Cable Dimensions 5.0 mm (0.20 in)

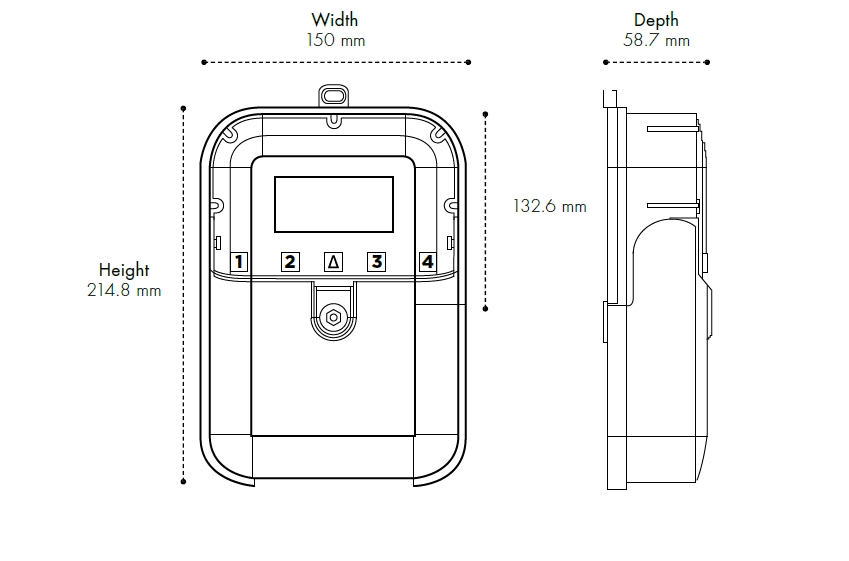

Dimension Drawing

Click on image to enlarge.

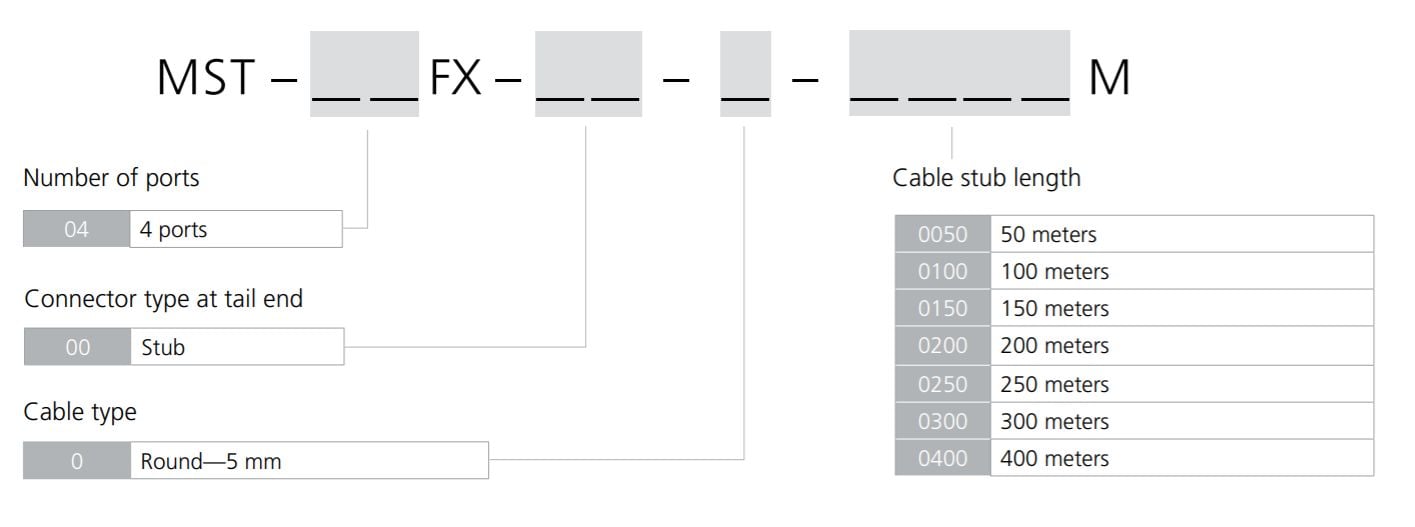

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type Gasketed hardened plastic

Optical Specifications

Fiber Type G.657.A1
Wavelength Range 1260–1635 nm
Insertion Loss, Terminal Connector, maximum 0.4 dB
Insertion Loss, Terminal Connector, typical 0.16 dB
Return Loss, Connector, minimum 65 dB

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing
Environmental Space Above ground | Below ground
Qualification Standards IEC 60529, IP65
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Weight, without cable 0.99 kg | 2.183 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability EMEA
Product Type Access terminal, without splitter/tap
Product Brand DLX®
Product Series Mini-MST

General Specifications

Cable Type Armored - Round - Loose Tube
Cable, quantity 1
Distribution Type 4 ports
Enclosure Color Gray
Mounting Handhole | Wall
Port Type Hardened mini-size DLX
Port, quantity 4
Splitter, quantity 0
Stub Type Stub tail

Dimensions

Height 214.8 mm | 8.457 in
Width 150 mm | 5.906 in
Cable Length 150 m | 492.126 ft
Depth 58.7 mm | 2.311 in
Outer Cable Dimensions 5.0 mm (0.20 in)

Material Specifications

Enclosure Material Type Gasketed hardened plastic

Optical Specifications

Fiber Type G.657.A1
Wavelength Range 1260–1635 nm
Insertion Loss, Terminal Connector, maximum 0.4 dB
Insertion Loss, Terminal Connector, typical 0.16 dB
Return Loss, Connector, minimum 65 dB

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–95%, non-condensing
Environmental Space Above ground | Below ground
Qualification Standards IEC 60529, IP65
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Weight, without cable 0.99 kg | 2.183 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
