FHD-XK1A

Base Product: FHD

Available in:
Asia
Australia/New Zealand
EMEA
Europe
Latin America
North America

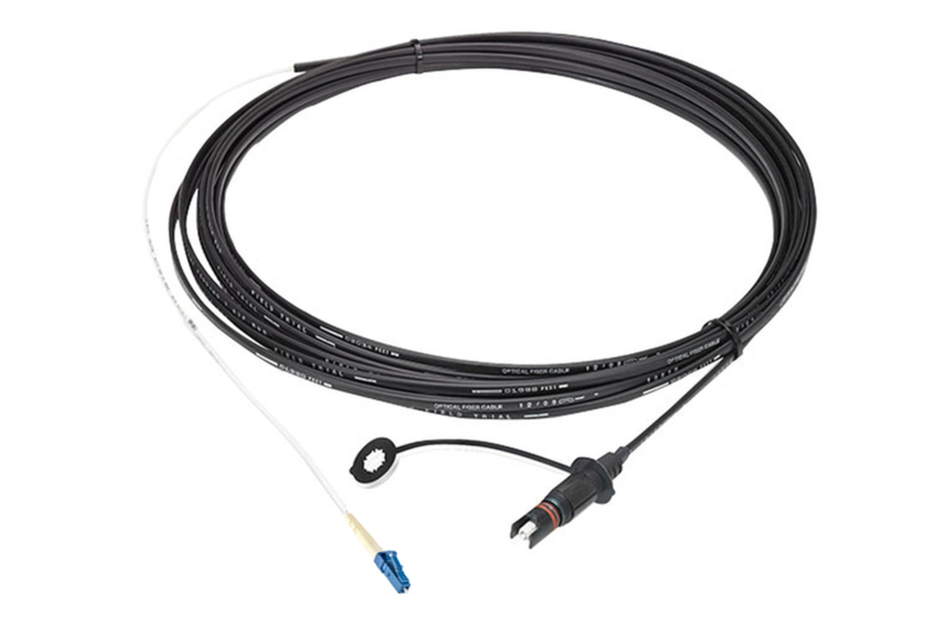

DLX® Fiber Optic Hardened Drop Cable Assembly, DLX-LC/UPC, flat dielectric cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of FHD-XK1A by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length m ft Spool Option

Part Number	Cable Assembly Length	UOM	Spool Option
No configured items found.

Features and Benefits

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Europe \| Latin America \| North America
Product Type	Fiber drop cable assembly
Product Brand	DLX®
Product Series	FHD
Ordering Note	Drops are automatically coiled 0 to 1,000 ft (305 m), unless spool option "L" or "R" is specified for this range of length \| Drops are automatically spooled at 1,001 ft (306 m) with connector B deploying first from spool

General Specifications

Cable Type	Dielectric - Flat
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	1
Color, boot B	Blue
Color, connector B	Blue
Interface, Connector A	Hardened mini-size DLX
Interface, Connector B	LC/UPC
Jacket Color	Black
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	50 – 2000
Cable Outer Diameter	4.5 x 8.1 mm (0.18 x 0.32 in)

Ordering Tree

Click on image to enlarge.

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	100 mm \| 3.937 in
Minimum Bend Radius, unloaded	150 mm \| 5.906 in
Tensile Load, long term, maximum	450 N \| 101.164 lbf
Tensile Load, short term, maximum	1300 N \| 292.252 lbf
Cable Crush Resistance, maximum	22 N/mm \| 125.623 lb/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A1/A2
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, maximum, connector B	0.4 dB
Insertion Loss, typical	0.16 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	55 dB

Environmental Specifications

Operating Temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Outdoor
Qualification Standards	NEMA type 6, 10 ft waterhead \| Telcordia GR-20 \| Telcordia GR-3120

Packaging and Weights

Cable weight	36 kg/km \| 24.191 lb/kft
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Europe \| Latin America \| North America
Product Type	Fiber drop cable assembly
Product Brand	DLX®
Product Series	FHD
Ordering Note	Drops are automatically coiled 0 to 1,000 ft (305 m), unless spool option "L" or "R" is specified for this range of length \| Drops are automatically spooled at 1,001 ft (306 m) with connector B deploying first from spool

General Specifications

Cable Type	Dielectric - Flat
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	1
Color, boot B	Blue
Color, connector B	Blue
Interface, Connector A	Hardened mini-size DLX
Interface, Connector B	LC/UPC
Jacket Color	Black
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	50 – 2000
Cable Outer Diameter	4.5 x 8.1 mm (0.18 x 0.32 in)

Mechanical Specifications

Minimum Bend Radius, loaded	100 mm \| 3.937 in
Minimum Bend Radius, unloaded	150 mm \| 5.906 in
Tensile Load, long term, maximum	450 N \| 101.164 lbf
Tensile Load, short term, maximum	1300 N \| 292.252 lbf
Cable Crush Resistance, maximum	22 N/mm \| 125.623 lb/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A1/A2
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, maximum, connector B	0.4 dB
Insertion Loss, typical	0.16 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	55 dB

Environmental Specifications

Operating Temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Outdoor
Qualification Standards	NEMA type 6, 10 ft waterhead \| Telcordia GR-20 \| Telcordia GR-3120

Packaging and Weights

Cable weight	36 kg/km \| 24.191 lb/kft
Packaging quantity	1

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted
