ARGMPLUGD

Base Product
  • Available in:
  • Asia
  • Australia/New Zealand
  • China
  • Europe
  • India
  • Latin America
  • Middle East/Africa
  • North America

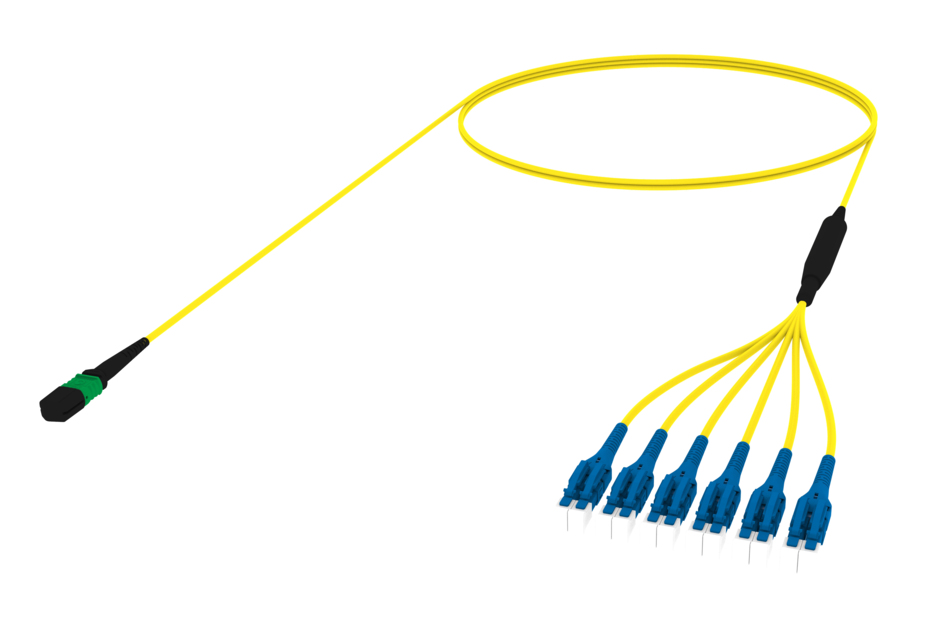

Singlemode MPO12 (Unpinned) to LC/UPC Uniboot, Array Cord, 12-Fiber, Low Smoke Zero Halogen

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of ARGMPLUGD by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Jacket Color Breakout Length/Option Cord Length
No configured items found.

Product Classification

Regional Availability Asia | Australia/New Zealand | China | Europe | India | Latin America | Middle East/Africa | North America
Portfolio CommScope®
Product Type Fiber array cable assembly
Ordering Note For additional jacket colors, please contact a CommScope Sales Representative | For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration

General Specifications

Color, boot A Black
Color, connector A Green
Color, boot B Blue
Color, connector B Blue
Construction Type Stranded
Furcation Color Yellow
Interface, Connector A MPO-12/APC Female
Interface Feature, connector A Unpinned
Interface, Connector B LC/UPC
Interface Feature, connector B Uniboot
Jacket Color Yellow
Polarity Method A
Fibers per Subunit, quantity 12
Total Fibers, quantity 12

Dimensions

Cable Assembly Length Range (m) 1 – 305
Cable Assembly Length Range (ft) 1 – 999

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 ° | 4.40 lb @ 90 °

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Dual Rated LSZH/Riser | Indoor

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant/Exempted
ANATEL Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | China | Europe | India | Latin America | Middle East/Africa | North America
Portfolio CommScope®
Product Type Fiber array cable assembly
Ordering Note For additional jacket colors, please contact a CommScope Sales Representative | For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration

General Specifications

Color, boot A Black
Color, connector A Green
Color, boot B Blue
Color, connector B Blue
Construction Type Stranded
Furcation Color Yellow
Interface, Connector A MPO-12/APC Female
Interface Feature, connector A Unpinned
Interface, Connector B LC/UPC
Interface Feature, connector B Uniboot
Jacket Color Yellow
Polarity Method A
Fibers per Subunit, quantity 12
Total Fibers, quantity 12

Dimensions

Cable Assembly Length Range (m) 1 – 305
Cable Assembly Length Range (ft) 1 – 999

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 ° | 4.40 lb @ 90 °

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Dual Rated LSZH/Riser | Indoor

Packaging and Weights

Packaging quantity 1
