FGS-HMEC-F

  • Available in:
  • Asia
  • Australia/New Zealand
  • Latin America
  • North America
  • EMEA

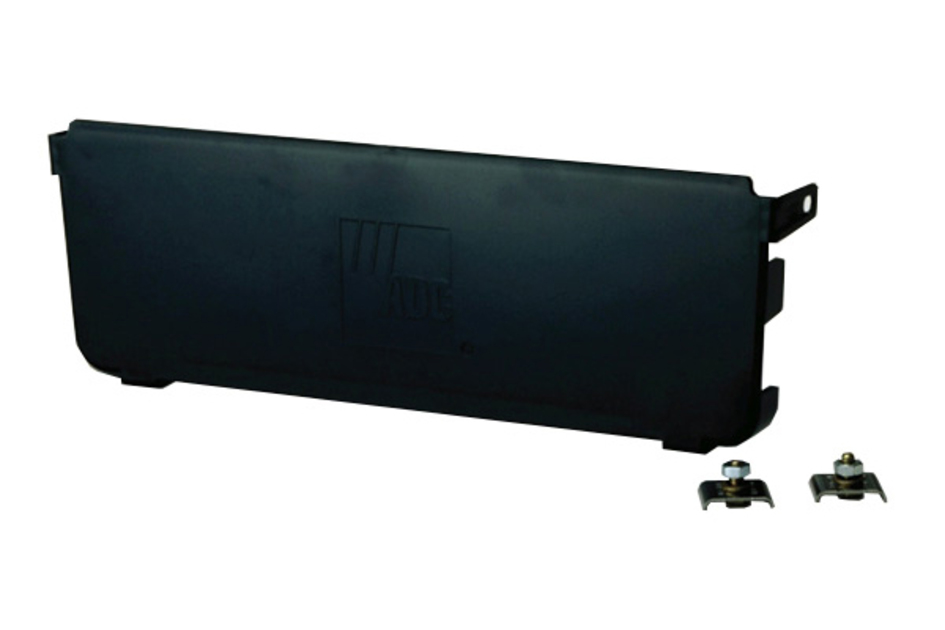

FiberGuide® End Cap Kit, 4 in x 12 in
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
  • FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
  • FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
  • Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | Latin America | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway end cap
Product Brand FiberGuide®

General Specifications

Color Black
Orientation Horizontal
Section Type End cap

Dimensions

Height 112 mm | 4.409 in
Width 343 mm | 13.504 in
System Dimensions 300 mm x 100 mm | 12 in x 4 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating UL 94 V-0 | UL 2024 | CSA S143
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability Asia | Australia/New Zealand | Latin America | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway end cap
Product Brand FiberGuide®

General Specifications

Color Black
Orientation Horizontal
Section Type End cap

Dimensions

Height 112 mm | 4.409 in
Width 343 mm | 13.504 in
System Dimensions 300 mm x 100 mm | 12 in x 4 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating UL 94 V-0 | UL 2024 | CSA S143
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
