FGS-MU9E-B

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

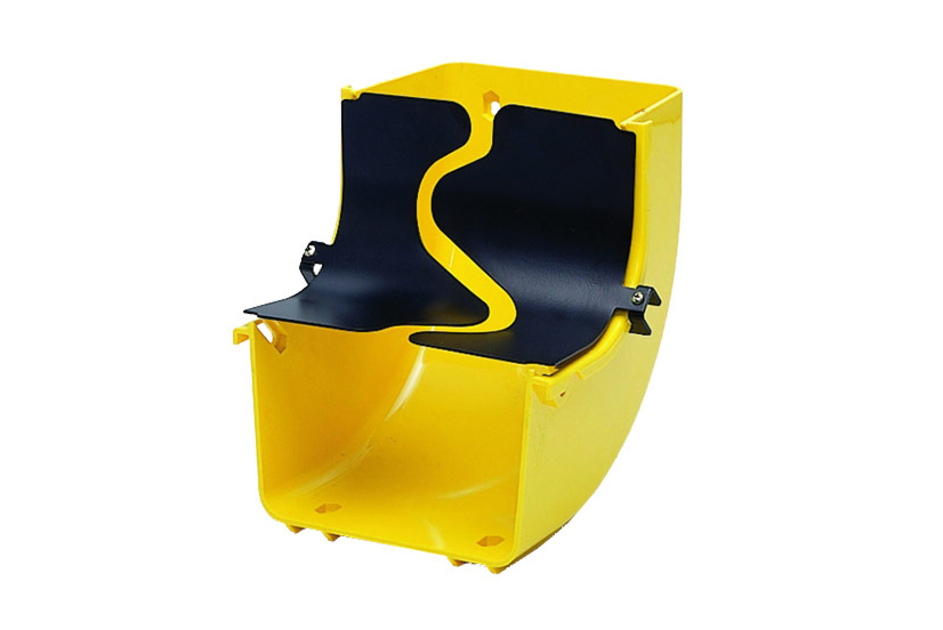

FiberGuide® 90° Up Elbow, 4 in x 6 in, yellow

Specifications
Finish making your selections or clear them to view relevant specifications.
View Download
How to Buy
Features and Benefits
  • FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
  • FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
  • FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
  • Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber raceway elbow section
Product Brand FiberGuide®
Product Series FGS

General Specifications

Angle/Bend Direction 90° up
Color Yellow
Orientation Vertical
Section Type Elbow section

Dimensions

Height 218 mm | 8.583 in
Width 196 mm | 7.717 in
System Dimensions 102 mm x 152 mm (4 in x 6 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Weight, net 0.85 kg | 1.874 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber raceway elbow section
Product Brand FiberGuide®
Product Series FGS

General Specifications

Angle/Bend Direction 90° up
Color Yellow
Orientation Vertical
Section Type Elbow section

Dimensions

Height 218 mm | 8.583 in
Width 196 mm | 7.717 in
System Dimensions 102 mm x 152 mm (4 in x 6 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Weight, net 0.85 kg | 1.874 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
