FGSB-MD4A-C

  • Available in:
  • Australia/New Zealand
  • Latin America
  • Asia
  • North America
  • EMEA

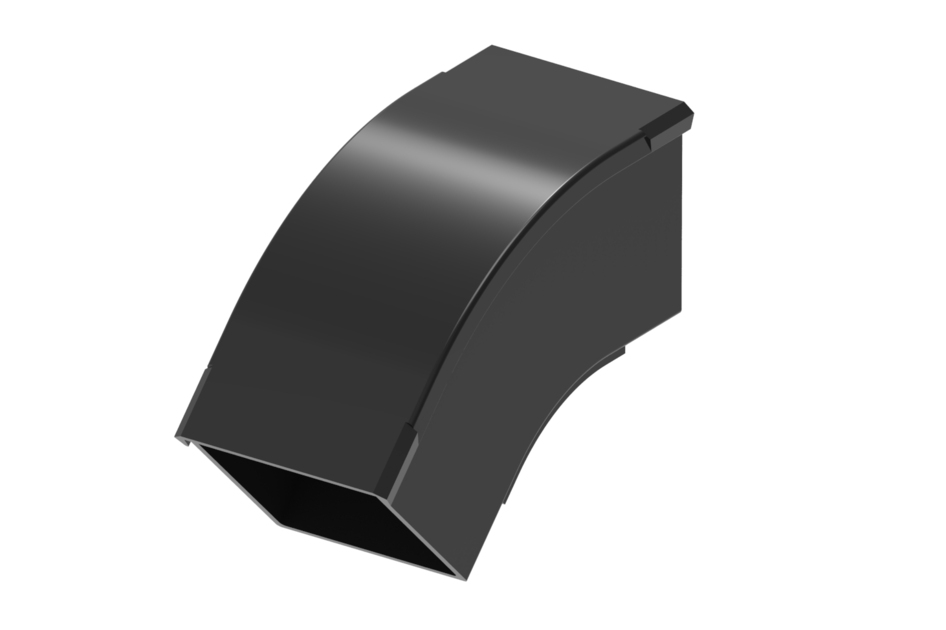

FiberGuide® 45° Down Elbow, 2 in x 2 in, black
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
  • FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
  • FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
  • Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications

Product Classification

Regional Availability Australia/New Zealand | Latin America | Asia | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway elbow section
Product Brand FiberGuide®

General Specifications

Angle/Bend Direction 90° down
Color Black
Orientation Vertical
Section Type Elbow section

Dimensions

System Dimensions 50 mm x 50 mm | 2 in x 2 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 94 V-0 | UL 2024
Halogen Characteristics WEEE | Blue Angel | TCO '99
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability Australia/New Zealand | Latin America | Asia | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway elbow section
Product Brand FiberGuide®

General Specifications

Angle/Bend Direction 90° down
Color Black
Orientation Vertical
Section Type Elbow section

Dimensions

System Dimensions 50 mm x 50 mm | 2 in x 2 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 94 V-0 | UL 2024
Halogen Characteristics WEEE | Blue Angel | TCO '99
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
