5727803 | P3® 840 JCA

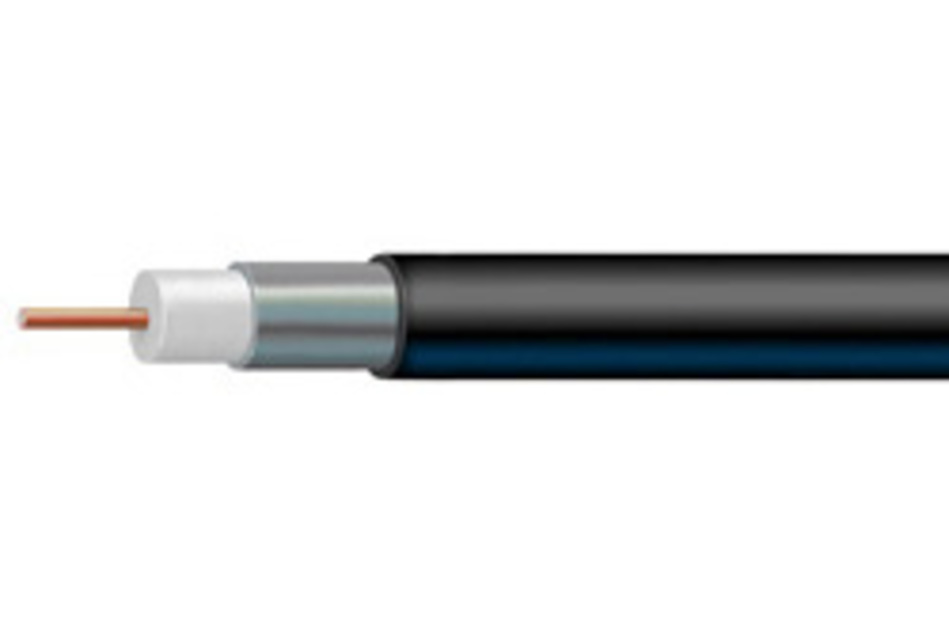

75 Ohm P3® Trunk and Distribution Cable, black PE jacket
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Coaxial hardline cable
Product Brand P3®
Warranty One year

General Specifications

Cable Type 840 series
Construction Type Swaged
Jacket Color Black
Short Description P3 840 JCA SM PR2171

Dimensions

Cable Length 731.52 m | 2400 ft
Diameter Over Center Conductor, nominal 4.928 mm | 0.194 in
Diameter Over Dielectric, nominal 19.812 mm | 0.78 in
Diameter Over Jacket, nominal 23.114 mm | 0.91 in
Diameter Over Outer Conductor, nominal 21.336 mm | 0.84 in
Jacket Thickness, nominal 0.889 mm | 0.035 in
Outer Conductor Thickness, nominal 0.762 mm | 0.03 in

Electrical Specifications

Capacitance 50.197 pF/m | 15.3 pF/ft
Capacitance Tolerance ±1.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal 0.43 ohms/kft | 1.411 ohms/km
dc Resistance, Loop, nominal 0.6 ohms/kft | 1.969 ohms/km
dc Resistance, Outer Conductor, nominal 0.17 ohms/kft | 0.558 ohms/km
Jacket Spark Test Voltage 5000 Vac
Nominal Velocity of Propagation (NVP) 89 %
Operating Frequency Band 5–3000 MHz
Structural Return Loss 26 dB @ 1002–1218 MHz | 30 dB @ 5–1002 MHz

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.300 0.090
55.0 MHz 1.050 0.320
83.0 MHz 1.310 0.400
85.0 MHz 1.280 0.390
204.0 MHz 2.070 0.630
211.0 MHz 2.130 0.650
250.0 MHz 2.300 0.700
300.0 MHz 2.530 0.770
350.0 MHz 2.760 0.840
400.0 MHz 2.990 0.910
450.0 MHz 3.180 0.970
500.0 MHz 3.380 1.030
550.0 MHz 3.580 1.090
600.0 MHz 3.740 1.140
750.0 MHz 4.270 1.300
865.0 MHz 4.660 1.420
1000.0 MHz 5.020 1.530
1002.0 MHz 5.030 1.530
1218.0 MHz 5.770 1.760
1300.0 MHz 6.000 1.830
1400.0 MHz 6.270 1.910
1500.0 MHz 6.540 1.990
1600.0 MHz 6.800 2.070
1700.0 MHz 7.050 2.150
1794.0 MHz 7.290 2.220
1800.0 MHz 7.300 2.230
2000.0 MHz 7.790 2.370
2200.0 MHz 8.260 2.520
2400.0 MHz 8.720 2.660
2600.0 MHz 9.170 2.790
2800.0 MHz 9.610 2.930
3000.0 MHz 10.030 3.060

Material Specifications

Center Conductor Material Copper-clad aluminum
Dielectric Material Foam PE
Jacket Material PE
Outer Conductor Material Aluminum

Mechanical Specifications

Minimum Bend Radius, bonded 190.5 mm | 7.5 in
Pulling Tension, maximum 317.515 kg | 700 lb

Environmental Specifications

Environmental Space Aerial

Packaging and Weights

Packaging Type Reel
Weight, gross 465.795 kg/km | 313 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
