760149161 | O-008-DN-8W-F08NS/30T

Base Product: O-DN

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Fiber drop cable, TeraSPEED® Single Jacket All-Dielectric Arid Core, 8-fiber, Singlemode G.652.D and G.657.A1, Gel-filled, Feet jacket marking, Black jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable
Product Series	O-DN

General Specifications

Cable Type	Central loose tube
Construction Type	Non-armored
Subunit Type	Gel-filled
Jacket Color	Black
Jacket Marking	Feet
Subunit, quantity	1
Fibers per Subunit, quantity	8
Total Fiber Count	8

Dimensions

Buffer Tube/Subunit Diameter	3 mm \| 0.118 in
Diameter Over Jacket	8.7 mm \| 0.343 in

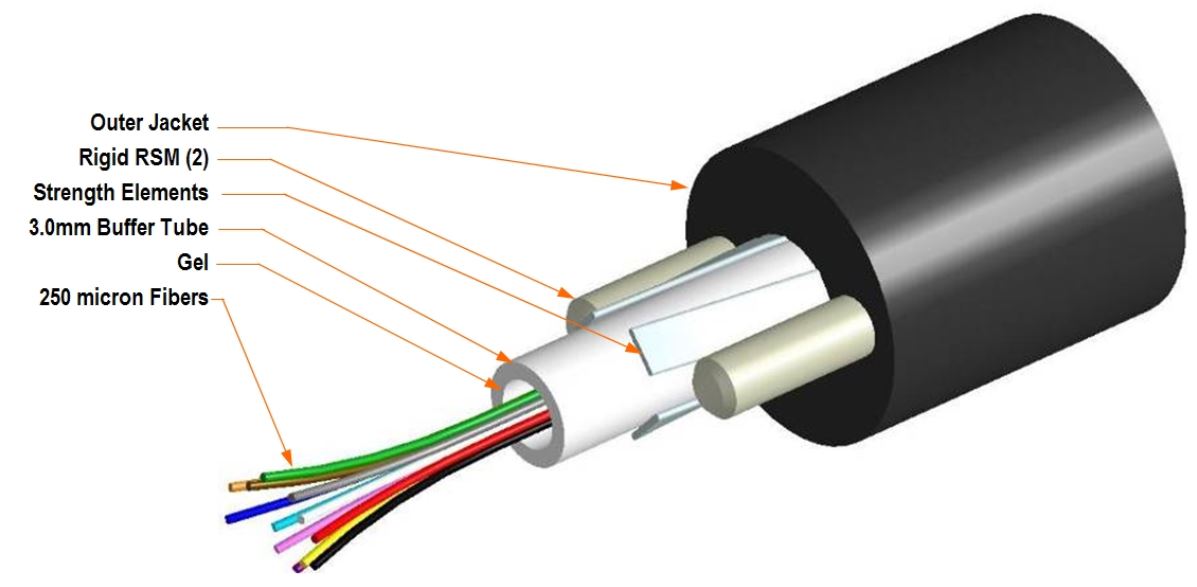

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

Mechanical Specifications

Minimum Bend Radius, loaded	130 mm \| 5.118 in
Minimum Bend Radius, unloaded	87 mm \| 3.425 in
Tensile Load, long term, maximum	400 N \| 89.924 lbf
Tensile Load, short term, maximum	1334 N \| 299.895 lbf
Compression	10 N/mm \| 57.101 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	35 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	2.94 N-m \| 26.021 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	594 m \| 1948.819 ft

Optical Specifications

Fiber Type

G.652.D and G.657.A1, TeraSPEED® | OS2 | OS2

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-110-717
Environmental Space	Aerial, lashed \| Buried
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze	-2 °C \| 28.4 °F
Cable Freeze Test Method	FOTP-98 \| IEC 60794-1 F15
Drip	70 °C \| 158 °F
Drip Test Method	FOTP-81 \| IEC 60794-1 E14
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

69 kg/km | 46.366 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
