LazrSPEED® Riser Distribution Cable, 96 fiber multi-unit with 12 fiber subunits
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability EMEA | North America | Australia/New Zealand | Asia | Latin America
Portfolio CommScope®
Product Type Fiber indoor cable

General Specifications

Cable Type Distribution
Construction Type Non-armored
Fiber Type, quantity 96
Fibers per Subunit, quantity 12
Jacket Color Aqua
Subunit Type Gel-free
Subunit, quantity 8
Total Fiber Count 96

Dimensions

Buffer Tube/Subunit Diameter 5.95 mm | 0.234 in
Diameter Over Jacket 23.58 mm | 0.928 in

Mechanical Specifications

Minimum Bend Radius, loaded 354 mm | 13.937 in
Minimum Bend Radius, unloaded 236 mm | 9.291 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1335 N | 300.12 lbf
Compression 10 N/mm | 1.751 lb/in
Compression Test Method IEC 60794-1 E3 | FOTP-41
Flex 100 cycles
Flex Test Method IEC 60794-1 E6 | FOTP-104
Impact 5.88 N-m | 52.042 in lb
Impact Test Method IEC 60794-1 E4 | FOTP-25
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1 E1 | FOTP-33
Twist 10 cycles
Twist Test Method FOTP-85 | IEC 60794-1 E7
Vertical Rise, maximum 81 m | 265.748 ft

Optical Specifications

Fiber Type OM4, LazrSPEED® 550 | OM4, LazrSPEED® 550

Environmental Specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards Telcordia GR-409 | ANSI/ICEA S-83-596
Environmental Space Riser
Flame Test Listing NEC OFNR (ETL) and c(ETL)
Flame Test Method UL 1666

Environmental Test Specifications

Heat Age -20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method IEC 60794-1 F9
Low High Bend -20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test Method IEC 60794-1 E11 | FOTP-37
Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1 F1 | FOTP-3

Packaging and Weights

Cable weight 502 kg/km | 3630.971 lb/kft

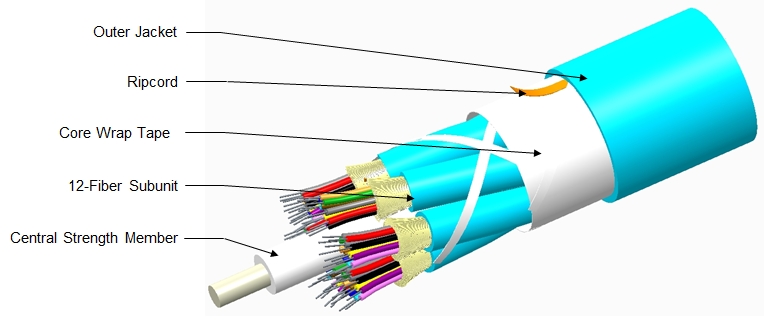

Representative Image

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability EMEA | North America | Australia/New Zealand | Asia | Latin America
Portfolio CommScope®
Product Type Fiber indoor cable

General Specifications

Cable Type Distribution
Construction Type Non-armored
Fiber Type, quantity 96
Fibers per Subunit, quantity 12
Jacket Color Aqua
Subunit Type Gel-free
Subunit, quantity 8
Total Fiber Count 96

Dimensions

Buffer Tube/Subunit Diameter 5.95 mm | 0.234 in
Diameter Over Jacket 23.58 mm | 0.928 in

Mechanical Specifications

Minimum Bend Radius, loaded 354 mm | 13.937 in
Minimum Bend Radius, unloaded 236 mm | 9.291 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1335 N | 300.12 lbf
Compression 10 N/mm | 1.751 lb/in
Compression Test Method IEC 60794-1 E3 | FOTP-41
Flex 100 cycles
Flex Test Method IEC 60794-1 E6 | FOTP-104
Impact 5.88 N-m | 52.042 in lb
Impact Test Method IEC 60794-1 E4 | FOTP-25
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1 E1 | FOTP-33
Twist 10 cycles
Twist Test Method FOTP-85 | IEC 60794-1 E7
Vertical Rise, maximum 81 m | 265.748 ft

Optical Specifications

Fiber Type OM4, LazrSPEED® 550 | OM4, LazrSPEED® 550

Environmental Specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards Telcordia GR-409 | ANSI/ICEA S-83-596
Environmental Space Riser
Flame Test Listing NEC OFNR (ETL) and c(ETL)
Flame Test Method UL 1666

Environmental Test Specifications

Heat Age -20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method IEC 60794-1 F9
Low High Bend -20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test Method IEC 60794-1 E11 | FOTP-37
Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1 F1 | FOTP-3

Packaging and Weights

Cable weight 502 kg/km | 3630.971 lb/kft
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
