760058487 | N-004-DS-5L-FSURD/D

  • Available in:
  • Australia/New Zealand
  • Asia
  • North America
  • EMEA
  • Latin America
LazrSPEED® Low Smoke Zero Halogen Riser Distribution Cable, 4 fiber single-unit, OM3, red
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Australia/New Zealand | Asia | North America | EMEA | Latin America
Portfolio CommScope®
Product Type Fiber indoor cable

General Specifications

Cable Type Distribution
Construction Type Non-armored
Fiber Type, quantity 4
Jacket Color Red
Subunit Type Gel-free
Total Fiber Count 4

Dimensions

Diameter Over Jacket 4.65 mm | 0.183 in

Mechanical Specifications

Minimum Bend Radius, loaded 70 mm | 2.756 in
Minimum Bend Radius, unloaded 46 mm | 1.811 in
Tensile Load, long term, maximum 200 N | 44.962 lbf
Tensile Load, short term, maximum 667 N | 149.948 lbf
Compression 10 N/mm | 1.751 lb/in
Compression Test Method FOTP-41 | IEC 60794-1 E3
Flex 100 cycles
Flex Test Method IEC 60794-1 E6 | FOTP-104
Impact 5.88 N-m | 52.042 in lb
Impact Test Method IEC 60794-1 E4 | FOTP-25
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1 E1 | FOTP-33
Twist 10 cycles
Twist Test Method IEC 60794-1 E7 | FOTP-85
Vertical Rise, maximum 500 m | 1640.42 ft

Optical Specifications

Fiber Type OM3, LazrSPEED® 300 | OM3, LazrSPEED® 300

Environmental Specifications

Installation temperature -10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards ANSI/ICEA S-83-596 | Telcordia GR-409
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s1a
EN50575 CPR Cable EuroClass Droplets Rating d1
EN50575 CPR Cable EuroClass Acidity Rating a2
Environmental Space Riser | Low Smoke Zero Halogen (LSZH)
Flame Test Listing NEC OFNR-LS (ETL) and c(ETL)
Flame Test Method UL 1666 | IEEE 383 | UL 1685 | IEC 60754-2 | IEC 60332-3 | IEC 61034-2

Environmental Test Specifications

Heat Age -20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method IEC 60794-1 F9
Low High Bend -10 °C to +60 °C (+14 °F to +140 °F)
Low High Bend Test Method IEC 60794-1 E11 | FOTP-37
Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method FOTP-3 | IEC 60794-1 F1

Packaging and Weights

Cable weight 21 kg/km | 151.893 lb/kft

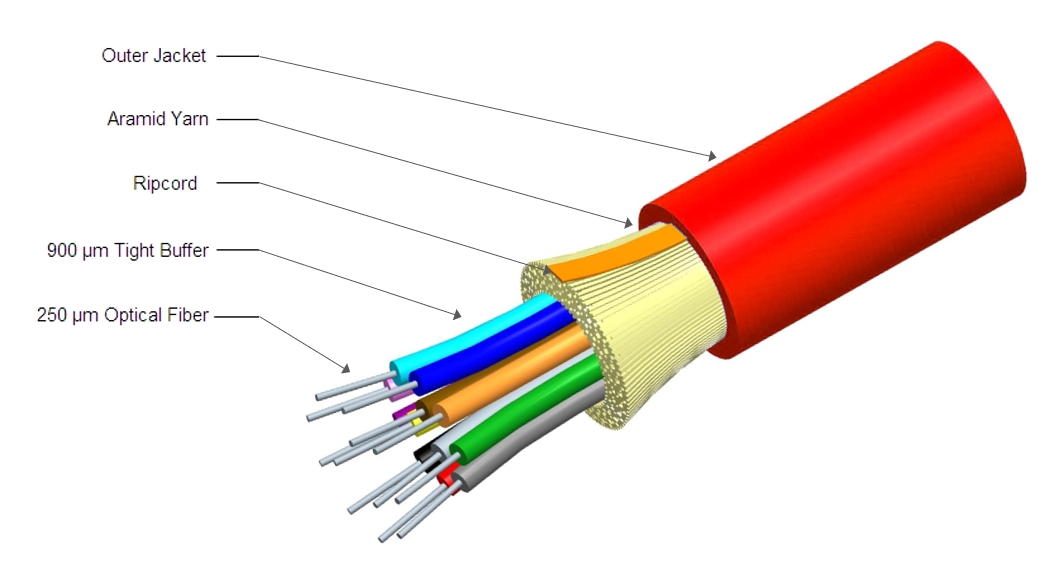

Representative Image

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CENELEC CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
