760259514 | C-004-DN-5X-M04AQ/09X/B1

Base Product: C-DN

Available in:
China

Fiber indoor/outdoor cable, LSZH Figure 8, 4 fiber, Multimode OM4, Meters jacket marking, Aqua jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Regional Availability	China
Portfolio	CommScope®
Product Type	Fiber indoor/outdoor cable
Product Series	C-DN

Optical Specifications, Wavelength Specifications

Attenuation, maximum

1.00 dB/km @ 1,300 nm | 3.00 dB/km @ 850 nm

General Specifications

Jacket Color	Aqua
Jacket Marking	Meters
Strength Members	Central fiber reinforced polymer (FRP) rod
Fibers per Subunit, quantity	4
Total Fiber Count	4

Dimensions

Height Over Jacket	3 mm \| 0.118 in
Width Over Jacket	2 mm \| 0.079 in

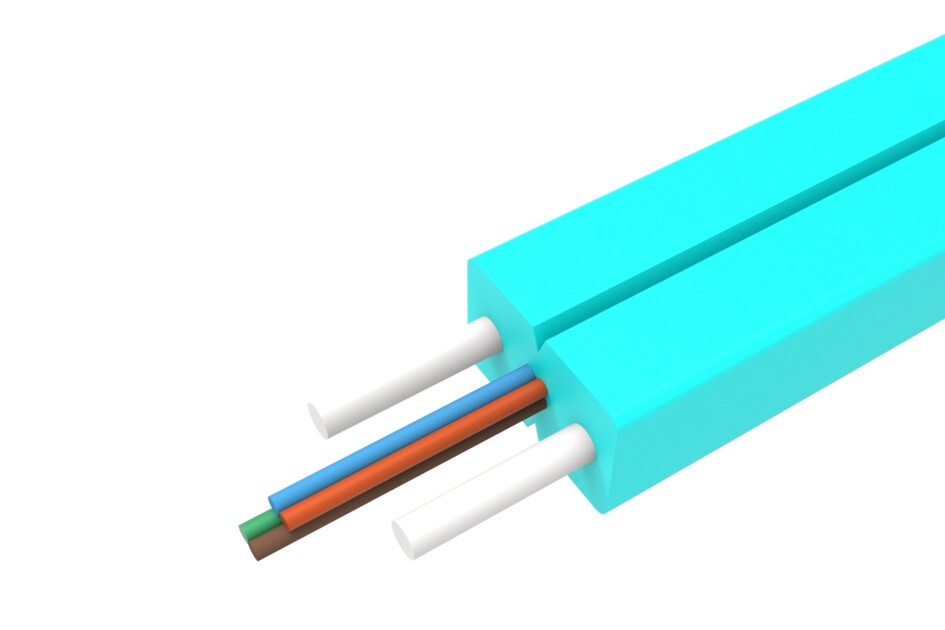

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

Low Smoke Zero Halogen (LSZH)

Mechanical Specifications

Minimum Bend Radius, loaded	40 mm \| 1.575 in
Minimum Bend Radius, unloaded	20 mm \| 0.787 in
Tensile Load, long term, maximum	40 N \| 8.992 lbf
Tensile Load, short term, maximum	80 N \| 17.985 lbf
Cable Crush Resistance, maximum	10 N/mm \| 57.101 lbf/in
Compression Test Method	IEC 60794-1-2 E3
Impact	1 N-m \| 8.851 in lb
Impact Test Method	IEC 60794-1 E4
Twist	20 cycles
Twist Test Method	IEC 60794-1 E7

Optical Specifications

Fiber Type

OM4

Environmental Specifications

Installation temperature	-10 °C to +50 °C (+14 °F to +122 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	IEC 60794-1-2
Environmental Space	Indoor/Outdoor
Flame Test Listing	B1
Flame Test Method	GB/T 31247
Jacket UV Resistance	ASTM G154 Cycle 1, for 720 hours

Environmental Test Specifications

Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	IEC 60794-1-2 F1

Packaging and Weights

Cable weight

9 kg/km | 6.048 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
