1967057-4

Base Product: D-CA

  • Available in:
  • Asia

Outside Plant Fiber Optic Cable, armored, 12-fiber, Singlemode, OS2, loose tube, gel-filled, 2000 m

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series D-CA

General Specifications

Armor Type Electrolytic chrome-coated steel (ECCS) tape
Cable Type Loose tube
Subunit Type Gel-filled
Filler, quantity 3
Jacket Color Black
Jacket Marking Meters
Strength Members E-glass yarns
Total Fiber Count 12

Dimensions

Cable Length 2000 m | 6561.68 ft
Buffer Tube/Subunit Diameter 2.4 mm | 0.094 in
Diameter Over Jacket 12.5 mm | 0.492 in

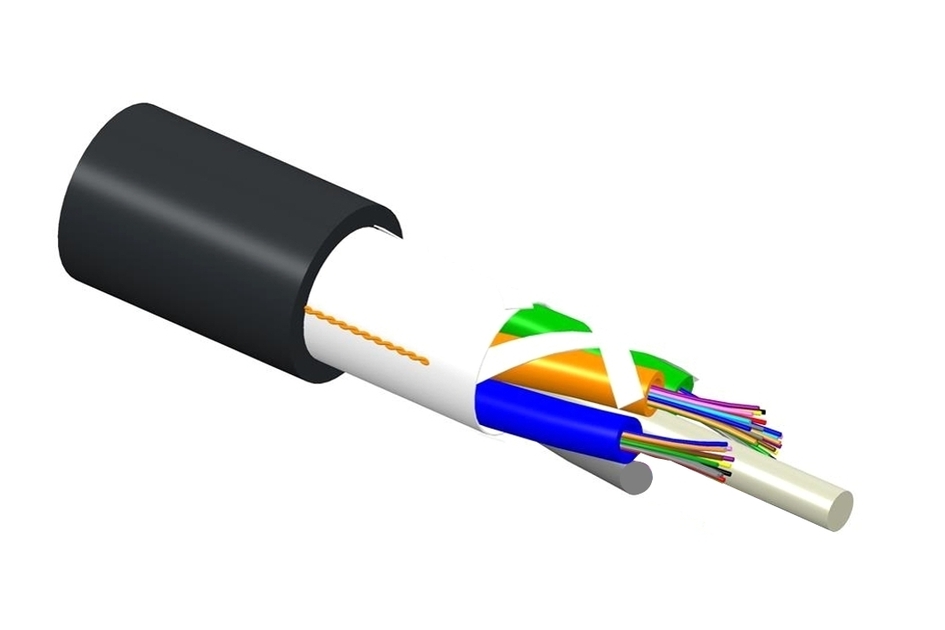

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Tensile Load, short term, maximum 4000 N | 899.236 lbf
Cable Crush Resistance, maximum 40 N/mm | 228.406 lb/in
Flex 25 cycles

Optical Specifications

Fiber Type G.652.D | OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.22 dB/km @ 1,550 nm | 0.34 dB/km @ 1,310 nm
Standards Compliance TIA-492CAAB (OS2)

Environmental Specifications

Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Jacket UV Resistance UV stabilized

Packaging and Weights

Cable weight 160 kg/km | 107.515 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
