760185942 | O-048-LN-CM-F12NS/25T/8W024/5L024

Base Product: O-LN

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Fiber OSP cable, LightScope® ZWP Single Jacket All-Dielectric, 48 fiber, Gel-Filled, Stranded Loose Tube, Singlemode + Multimode OM3, Feet jacket marking, Black jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-LN

General Specifications

Cable Type	Stranded loose tube
Construction Type	Non-armored
Subunit Type	Gel-filled
Filler, quantity	1
Jacket Color	Black
Jacket Marking	Feet
Subunit, quantity	4
Fibers per Subunit, quantity	12
Composite Fiber Count	24 + 24
Total Fiber Count	48

Dimensions

Buffer Tube/Subunit Diameter	2.5 mm \| 0.098 in
Diameter Over Jacket	10.2 mm \| 0.402 in

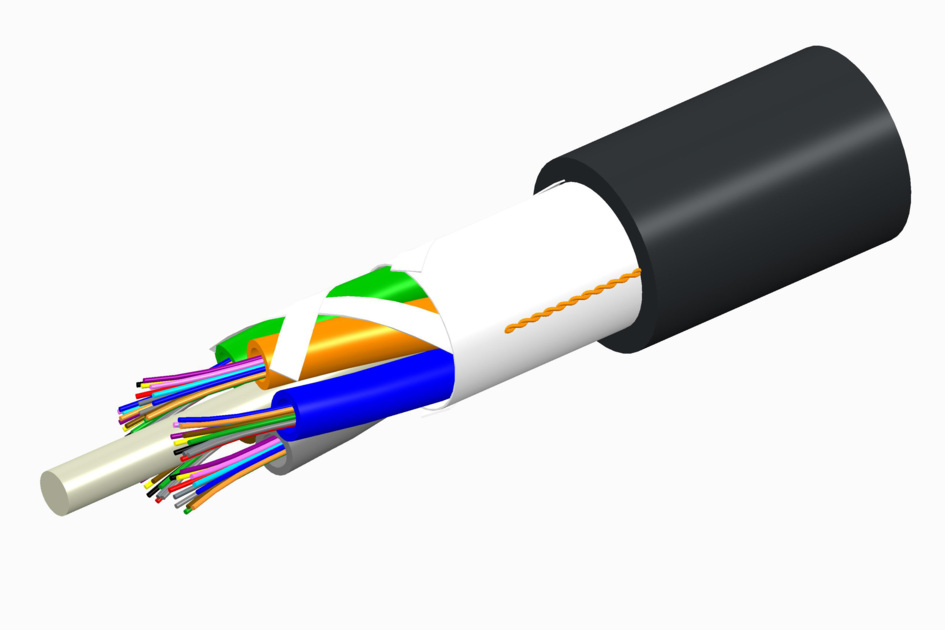

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

Mechanical Specifications

Minimum Bend Radius, loaded	153 mm \| 6.024 in
Minimum Bend Radius, unloaded	102 mm \| 4.016 in
Tensile Load, long term, maximum	800 N \| 179.847 lbf
Tensile Load, short term, maximum	2700 N \| 606.984 lbf
Compression	22 N/mm \| 125.623 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	25 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	4.41 N-m \| 39.032 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	1199 m \| 3933.727 ft

Optical Specifications

Fiber Type

Composite MM/SM | G.652.D and G.657.A1 | OM3, LazrSPEED® 300 | OS2

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-87-640 \| EN 187105
Environmental Space	Aerial, lashed \| Buried
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze	-2 °C \| 28.4 °F
Cable Freeze Test Method	FOTP-98 \| IEC 60794-1 F15
Drip	70 °C \| 158 °F
Drip Test Method	FOTP-81 \| IEC 60794-1 E14
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

68 kg/km | 45.694 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
