COWO
Base Product
- Available in:
- EMEA
COWO Fiber Customer Wall Outlet
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits

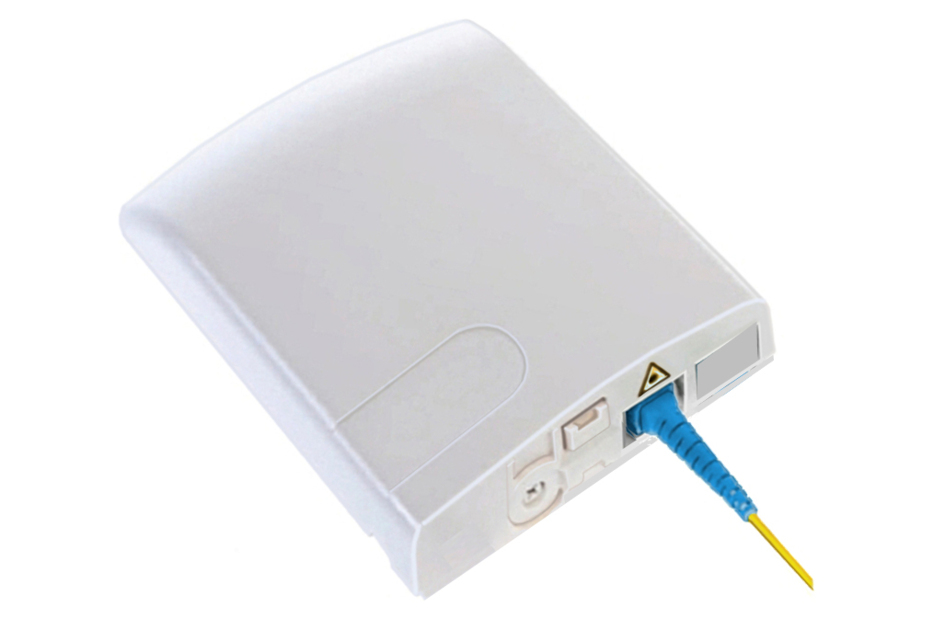

COWO is a fiber optic customer outlet that allows easy and unobtrusive termination of fiber optic cables in an office, home or communications room.
Features
Features
- Accommodates two termination/splice connections
- 2 SC simplex or 1 LC duplex adapters
- 2 crimp, mechanical or heat shrink splices
- IP20 rated
- Very flat design, mounts on a standard flush mount electrical outlet
- Utilizes reduced bend radius fiber (G657.A and B)
- Possibility to invert the adapter in the holder to prevent disconnection when pulling the patch cords
- RoHS compliant
- Conforms to UL 94 V-O
- Lockable with screw or lead-wire seal
- Cable entrance from the bottom, left and rear
- Made of molded plastic (halogen free, LSZH-1), white (RAL 9010)
Specifications
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber wall outlet |
| Product Series | COWO |
General Specifications
| Color | White |
| Cover Type | Hinged with latches |
| Lock Type | Lead-wire seal |
| Mounting | Wall mount |
Dimensions
| Height | 115.062 mm | 4.53 in |
| Depth | 24.384 mm | 0.96 in |
| Length | 80.01 mm | 3.15 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | LSZH thermoplastic |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor |
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber wall outlet |
| Product Series | COWO |
General Specifications
| Color | White |
| Cover Type | Hinged with latches |
| Lock Type | Lead-wire seal |
| Mounting | Wall mount |
Dimensions
| Height | 115.062 mm | 4.53 in |
| Depth | 24.384 mm | 0.96 in |
| Length | 80.01 mm | 3.15 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | LSZH thermoplastic |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor |
