65401677-06 | 6540 1 677-06
- Available in:
- Australia/New Zealand
- EMEA

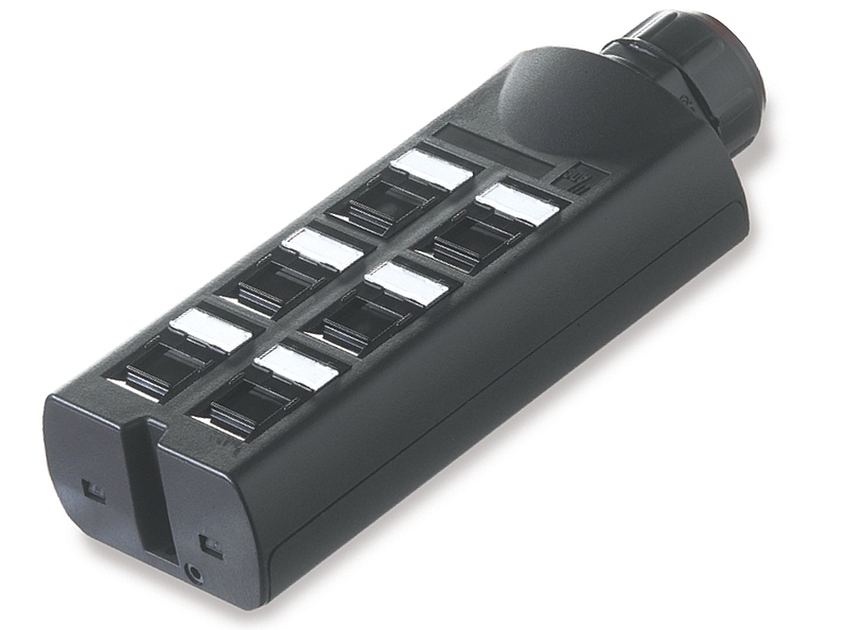

MiniPod, category 5e, 6 port, preloaded, unshielded UTP
Specifications
Features and Benefits
- Improved speed of redeployment in the workplace through rapid mechanism
- Simplified cabling of raised floor spaces and ideal for high density environments
- Ideal to be terminated at an early stage in the building works
- Designed for use with all standard flexible conduit systems
Specifications
Product Classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Modular jack enclosure |
| Product Series | MiniPod |
General Specifications
| ANSI/TIA Category | 5e |
| Color | Black |
| Integrated Dust Cover Type | Sliding |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Total Ports, quantity | 6 |
Dimensions
| Height | 85 mm | 3.346 in |
| Width | 195 mm | 7.677 in |
| Depth | 55 mm | 2.165 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Modular jack enclosure |
| Product Series | MiniPod |
General Specifications
| ANSI/TIA Category | 5e |
| Color | Black |
| Integrated Dust Cover Type | Sliding |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Total Ports, quantity | 6 |
Dimensions
| Height | 85 mm | 3.346 in |
| Width | 195 mm | 7.677 in |
| Depth | 55 mm | 2.165 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
