760253652 | SMB-4P-KJ-448

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

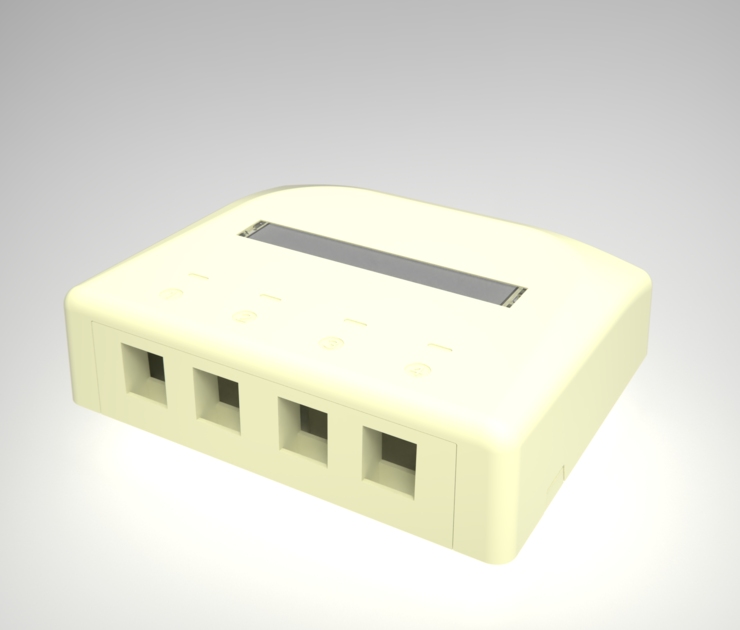

Surface Mount Module,Keystone,4 port, Lighr Almond

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount box

General Specifications

Application Used with KJ Series outlets | Used with KJX-6A jacks
Color Light almond
Mounting Surface
Outlet Orientation Flat
Port Marking Type Icon | Label
Total Ports, quantity 4

Dimensions

Height 38 mm | 1.496 in
Width 142.3 mm | 5.602 in
Depth 116.2 mm | 4.575 in

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0
Safety Standard UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 0.213 kg | 0.47 lb

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount box

General Specifications

Application Used with KJ Series outlets | Used with KJX-6A jacks
Color Light almond
Mounting Surface
Outlet Orientation Flat
Port Marking Type Icon | Label
Total Ports, quantity 4

Dimensions

Height 38 mm | 1.496 in
Width 142.3 mm | 5.602 in
Depth 116.2 mm | 4.575 in

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0
Safety Standard UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 0.213 kg | 0.47 lb
