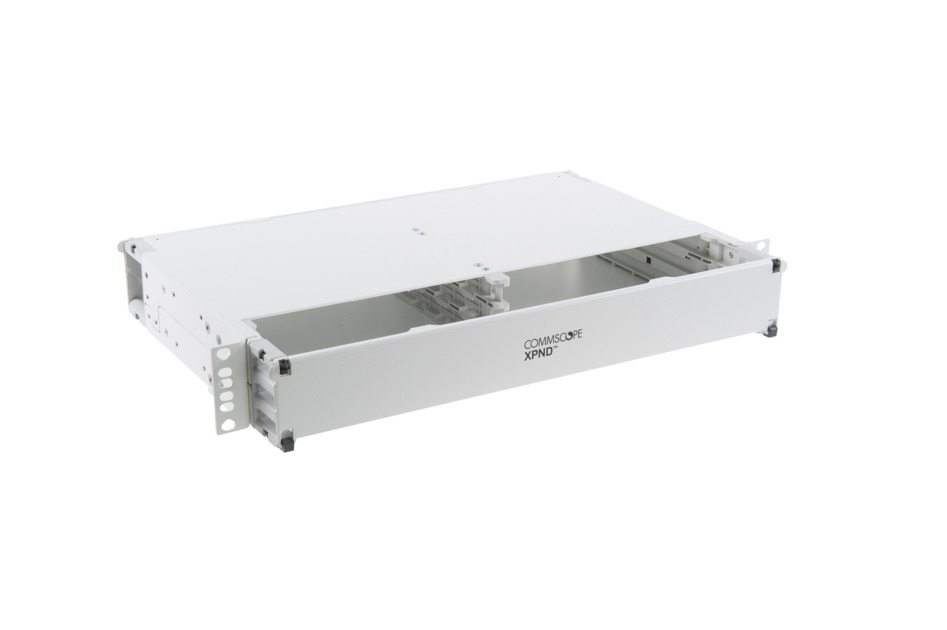

XPND 1.5Ru empty panel, accepts 6 XPND modular cassettes, providing up to 72 SC ports or 144 LC ports
Features and Benefits
- Components can be installed and removed from front or rear of panel
- Supports 8f, 12f, 16f and 24f applications while maintaining full panel density
- Cable mounting system allows for multiple trunk cables to be securely attached in the rear of panel
Specifications
Product Classification
| Regional Availability | Latin America | North America |
| Product Type | Fiber patch panel |
| Product Brand | XPND© |
General Specifications
| Color | White |
| Interface, front | Unloaded |
| Rack Type | EIA 19 in |
| Rack Units | 1.5 |
| Shelf Movement | Fixed |
| Total Ports, quantity | 0 |
Dimensions
| Height | 66.67 mm | 2.625 in |
| Width | 431.8 mm | 17.000 in |
| Depth | 304.8 mm | 12.000 in |
Material Specifications
| Material Type | Aluminum | Steel |
Environmental Specifications
| Safety Standard | c-UL-us |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 5.375 kg | 11.85 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
