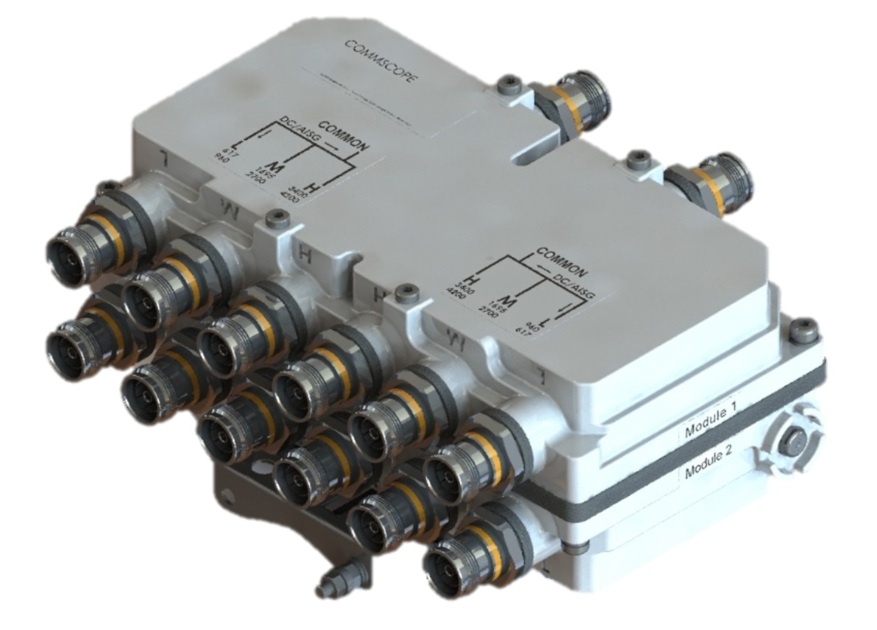

STX61742Q-43 | E14F10P64
Compact Quad Triplexer 617-960/1695-2700/3400- 4200 MHz, 4.3-10 connectors
Features and Benefits
- New Combining Solution to introduce 5G, 3.5GHz band
- BTS-to-feeder and feeder-to-antenna application
- New 4.3-10 connectors for improved PIM performance and size reduction
- dc/AISG pass-through on low frequency ports
- Suitable for space limited applications like Metro Cell, Lamp Pole, Concealment Solution and Macro Site
- Ideal for small cell applications
Specifications
Product Classification
| Product Type | Triplexer |
General Specifications
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 118 mm | 4.646 in |
| Width | 228 mm | 8.976 in |
| Depth | 85 mm | 3.346 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | AWS 1700 | CEL 850 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | IMT 2600 | LMR 750 | LMR 800 | LMR 900 | PCS 1900 | TDD 2000 | TDD 2300 | TDD 2600 | TDD 3500 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 |
| dc/AISG Pass-through, combiner | Branch 1 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–32 Vdc |
Electrical Specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 | 3 |
| Port Designation | 617-960 | 1695-2700 | 3400-4200 |
| License Band | APT 700, Band Pass CEL 850, Band Pass CEL 900, Band Pass EDD 800, Band Pass USA 600, Band Pass USA 700, Band Pass USA 750, Band Pass | AWS 1700, Band Pass DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass PCS 1900, Band Pass TDD 2000, Band Pass TDD 2300, Band Pass TDD 2600, Band Pass WCS 2300, Band Pass | TDD 3500, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 617–960 | 1695–2700 | 3400–4200 |
| Insertion Loss, typical, dB | 0.15 | 0.15 | 0.15 |
| Total Group Delay, maximum, ns | 8 | 8 | 8 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 35 | 35 | 35 |
| Input Power, RMS, maximum, W | 160 | 160 | 160 |
| Input Power, PEP, maximum, W | 1,600 | 1,600 | 1,600 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | -145 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Block Diagram
| Click on image to enlarge. |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 34.0 N @ 150 km/h (7.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 8.0 N @ 150 km/h (1.8 lbf @ 150 km/h) |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.2 kg | 0.441 lb |
| Volume | 2.3 L |
| Weight, with mounting hardware | 4.85 kg | 10.692 lb |
| Weight, without mounting hardware | 4.65 kg | 10.251 lb |
Product Classification
| Product Type | Triplexer |
General Specifications
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 118 mm | 4.646 in |
| Width | 228 mm | 8.976 in |
| Depth | 85 mm | 3.346 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | AWS 1700 | CEL 850 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | IMT 2600 | LMR 750 | LMR 800 | LMR 900 | PCS 1900 | TDD 2000 | TDD 2300 | TDD 2600 | TDD 3500 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 |
| dc/AISG Pass-through, combiner | Branch 1 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–32 Vdc |
Electrical Specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 | 3 |
| Port Designation | 617-960 | 1695-2700 | 3400-4200 |
| License Band | APT 700, Band Pass; CEL 850, Band Pass; CEL 900, Band Pass; EDD 800, Band Pass; USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass | AWS 1700, Band Pass; DCS 1800, Band Pass; IMT 2100, Band Pass; IMT 2600, Band Pass; PCS 1900, Band Pass; TDD 2000, Band Pass; TDD 2300, Band Pass; TDD 2600, Band Pass; WCS 2300, Band Pass | TDD 3500, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 617–960 | 1695–2700 | 3400–4200 |
| Insertion Loss, typical, dB | 0.15 | 0.15 | 0.15 |
| Total Group Delay, maximum, ns | 8 | 8 | 8 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 35 | 35 | 35 |
| Input Power, RMS, maximum, W | 160 | 160 | 160 |
| Input Power, PEP, maximum, W | 1,600 | 1,600 | 1,600 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | -145 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 34.0 N @ 150 km/h (7.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 8.0 N @ 150 km/h (1.8 lbf @ 150 km/h) |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.2 kg | 0.441 lb |
| Volume | 2.3 L |
| Weight, with mounting hardware | 4.85 kg | 10.692 lb |
| Weight, without mounting hardware | 4.65 kg | 10.251 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
