BHD-78

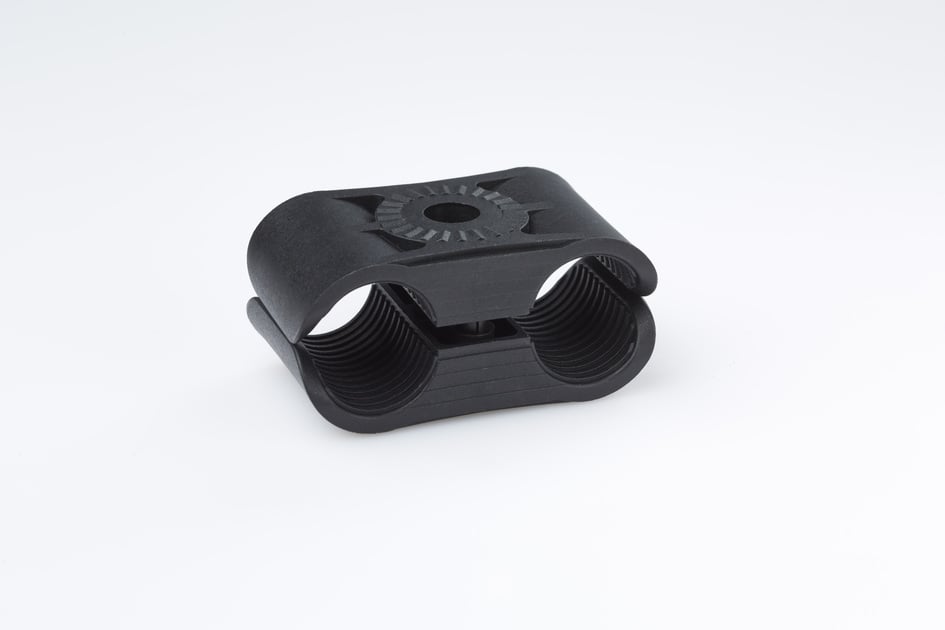

Double Block Hanger for 7/8 in coaxial cable
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 1.69 in | 42.926 mm
Maximum Stack Height 3
Width 1.58 in | 40.132 mm
Length 3.15 in | 80.01 mm
Compatible Diameter, maximum 1.11 in | 28.194 mm
Compatible Diameter, minimum 1.09 in | 27.686 mm
Nominal Size 7/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type 30% glass filled polypropylene (PP)

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 5.1 cm | 2.008 in
Width, packed 17.8 cm | 7.008 in
Length, packed 22.9 cm | 9.016 in
Packaging quantity 10
Weight, gross 0.56 kg | 1.235 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting 3/8 in (M10) drilled cable ladder

Dimensions

Height 1.69 in | 42.926 mm
Maximum Stack Height 3
Width 1.58 in | 40.132 mm
Length 3.15 in | 80.01 mm
Compatible Diameter, maximum 1.11 in | 28.194 mm
Compatible Diameter, minimum 1.09 in | 27.686 mm
Nominal Size 7/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type 30% glass filled polypropylene (PP)

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 5.1 cm | 2.008 in
Width, packed 17.8 cm | 7.008 in
Length, packed 22.9 cm | 9.016 in
Packaging quantity 10
Weight, gross 0.56 kg | 1.235 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
