FIST-SPLICE-TRAYS
Base Product
- Available in:
- EMEA

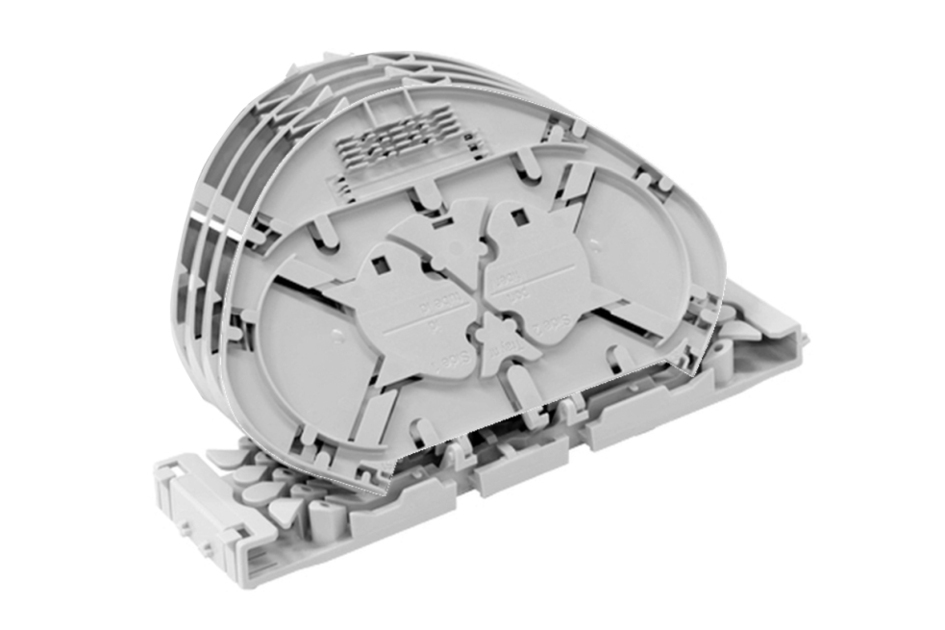

FIST® Splice Sub-assembly kit with splice trays
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
FIST-SOSA2 splicing sub-assemblies are the essential building blocks that allow the user to build a variety of networks. Total fiber management is offered as full fiber containment, full bend radius control and physical protection.
Different types are designed to allow for:
- A SOSA2 sub-assembly consists of the following parts:
- Organizer trays, designed to store fiber and splices
- A ‘wraparound’ grooveplate designed with slots for routing fiber to and from the organizer trays
Different types are designed to allow for:
- Single element management: fibers may be spliced according to their cable construction
- Single circuit management: The unique and essential ability to manage fibers in a single circuit fashion
- Single ribbon fiber management
- Fast, easy and toolless installation based upon the FIST fiber management system
- Compliant with most splice types and independent of any optical fiber construction
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Fiber splice tray |
| Product Brand | FIST® |
| Product Series | FIST-SOSA2 |
General Specifications
| Application | For use with BUDI fiber wall boxes | For use with FIST fiber splice closures | For use with FIST fiber splice panels |
| Color | Gray |
| Splice Tray Chip Type | ANT | Heat shrink | Micro heat shrink | Ribbon Heat Shrink |
Dimension Drawing
| Click on image to enlarge. |
Splicing Configuration
| Click on image to enlarge. |
Ordering Tree
| Click on image to enlarge. |
Material Specifications
| Material Type | PBT | PET |
Environmental Specifications
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | 93%, non-condensing |
| Environmental Space | Indoor | Outdoor |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Product Classification
| Regional Availability | EMEA |
| Product Type | Fiber splice tray |
| Product Brand | FIST® |
| Product Series | FIST-SOSA2 |
General Specifications
| Application | For use with BUDI fiber wall boxes | For use with FIST fiber splice closures | For use with FIST fiber splice panels |
| Color | Gray |
| Splice Tray Chip Type | ANT | Heat shrink | Micro heat shrink | Ribbon Heat Shrink |
Material Specifications
| Material Type | PBT | PET |
Environmental Specifications
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | 93%, non-condensing |
| Environmental Space | Indoor | Outdoor |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
