996061-000 | WRSS-60/300-12-M461
- Available in:
- North America

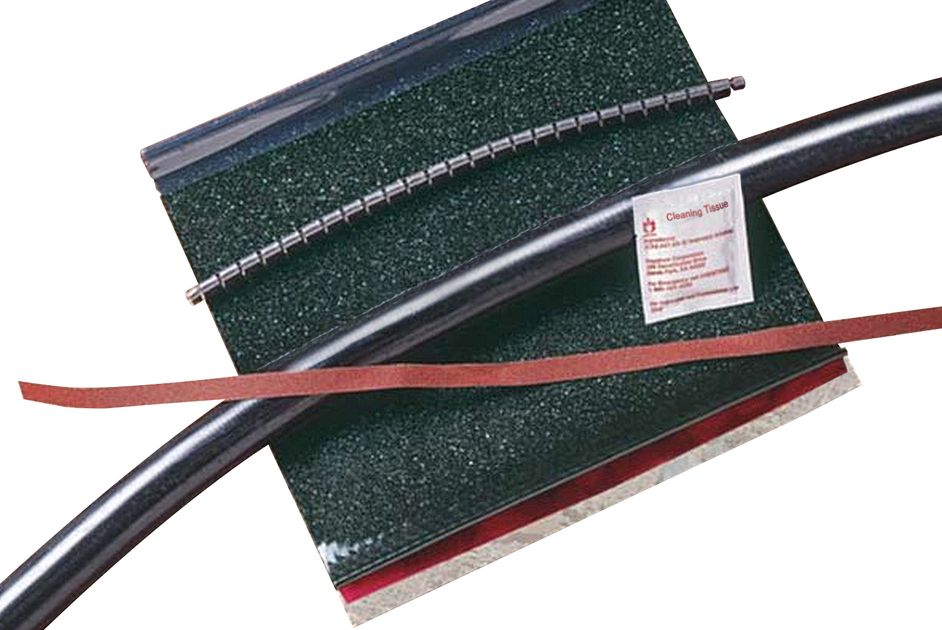

WRSS wraparound auxiliary heat shrink sleeve kit, cables with 0.60 to 3.00 inches cable diameter, 12 inches long
Specifications
Features and Benefits
- Accommodates a wide range of pressure and temperature, ideal for hostile environments
- Designed to be used for diameter transitions in cable where a large shrink ratio is required
- Minimized total required splice length allowing installation on existing cables in confined areas
Specifications
Product classification
| Regional Availability | North America |
| Product Type | Heat shrink repair sleeve |
| Product Series | WRSS |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 304.8 mm | 12 in |
| Expanded Inside Diameter, minimum | 300 mm | 11.811 in |
| Recovered Inside Diameter, maximum | 60 mm | 2.362 in |
| Single Cable Diameter, maximum | 76.2 mm | 3 in |
| Single Cable Diameter, minimum | 15.24 mm | 0.6 in |
Material Specifications
| Material Type | SuperSleeve sealing |
Environmental Specifications
| Environmental Space | Aerial | Buried |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | North America |
| Product Type | Heat shrink repair sleeve |
| Product Series | WRSS |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 304.8 mm | 12 in |
| Expanded Inside Diameter, minimum | 300 mm | 11.811 in |
| Recovered Inside Diameter, maximum | 60 mm | 2.362 in |
| Single Cable Diameter, maximum | 76.2 mm | 3 in |
| Single Cable Diameter, minimum | 15.24 mm | 0.6 in |
Material Specifications
| Material Type | SuperSleeve sealing |
Environmental Specifications
| Environmental Space | Aerial | Buried |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
